Материал: SN_Circ243-Rev.2 - Guidelines For The Presentation Of Navigation-Related Symbols Terms And Abbreviations

SN.1/Circ.243/Rev.2

Annex 1, page 9

Topic

Symbol

Description

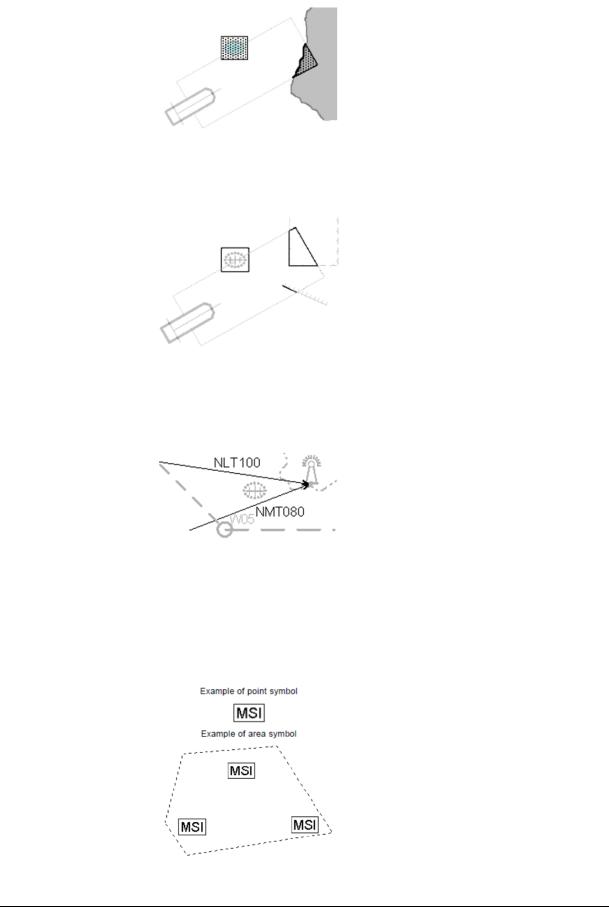

The graphical indication in the chart

area of an alarm condition (A11.4.4

and 11.4.6, MSC.232 (82)) should

be presented as a polygon or poly-

Look-ahead

line on the boundary of the area or

point object causing the condition.

alarm highlight

The polygon or poly-line should be

Example shows a depth area shallower

drawn using a thick solid line style

with recommended colour red. The

than safety contour and a dangerous

bounded area should have a

wreck within the look-ahead safety

transparent fill of the same colour.

check area

The graphical indication in the chart

area of warning or caution

conditions (see A11.4.4 and 11.4.6,

MSC.232 (82)) should be presented

as a polygon or poly-line on the

Look-ahead

boundary of the area or point object

causing the condition. The polygon

indication

or poly-line should be drawn using a

highlight

thick solid line style with

Example show point (wreck), restricted

recommended colour yellow and

area and line (fish stakes)

adjacent thin lines of black on either

side for visibility against a white

(Day) background. The bounded

area should not be filled.

A danger bearing or clearing line

should be presented as a single line

with an arrowhead directed at the

base of a charted object. The line

should be drawn using a thin solid

line style with the required colour

Danger bearing

red. A danger bearing should be

The drawing is not to scale. The

labelled with its bearing. The letters

example shows the default symbols for

"NMT" should be used to indicate

a light and a dangerous wreck at an

"not more than". The letters "NLT" to

unknown depth.

indicate "not less than".

Alphanumeric text used to label the

danger bearing should be the same

basic colour as the line.

MSI point symbol should be

presented as a box with the "MSI"

inscribed inside it. The box should

be centred at the position derived

from the MSI message. The box

MSI

should be drawn using a thick solid

line style.

The MSI area symbol should be

presented as a series of lines

bounding a geographic area

designated as "caution" to

Topic

Symbol

Description

navigation. Connecting lines should

be drawn using thin dashed line

style and using the same basic

colour as the symbol itself. The area

should be filled with a sparse

pattern of MSI point symbols.

Note that the source of MSI may be

NAVTEX, AIS ASM function

identifier 22 or 23 (SN.1/Circ.289),

etc.

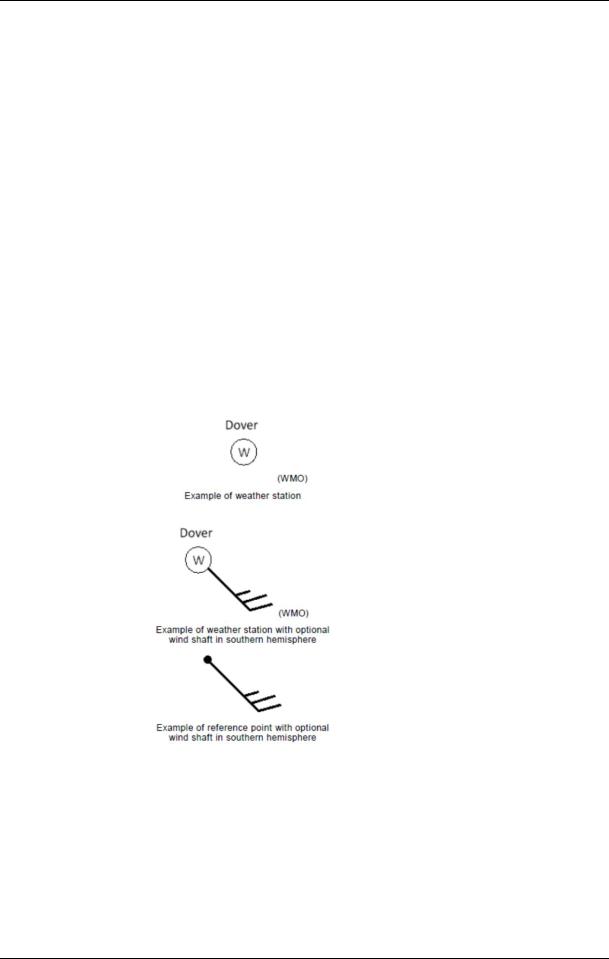

Meteorological information symbols

consist of two parts:

• the weather station symbol;

and

• reference point and the wind

shaft.

The weather station symbol should

be presented as a circle with "W"

inscribed inside it. The circle should

be centred at the position derived

from the site location report binary

message. The circle should not be

more than 6 mm in diameter, drawn

using a thin solid line style and

using the same basic colour as AIS

AtoN. The reference point symbol

should be presented as a dot. The

Meteorological

dot should be more drawn using a

information

thin solid line style and using the

same basic colour as AIS AtoN.

Alphanumeric text may be used to

label the weather station.

The optional wind shaft should be

used to represent wind force and

direction as defined by WMO

No.485, Appendix II-4, the surface

plotting model. If wind force and

direction is not available then there

should be no environmental symbol.

The wind shaft should be not more

than 3 times the diameter of the

weather station symbol. The length

of barbs and pennants should not

exceed the diameter of the weather

station symbol. The wind shaft

should be drawn using a thick solid

line style and using the same basic

SN.1/Circ.243/Rev.2

Annex 1, page 11

Topic

Symbol

Description

colour as AIS AtoN. The wind shaft

is directed along the axis of the wind

towards the centre of the station

circle and stops at its

circumference. Wind is represented

by barbs and solid pennants. The

full barbs representing 5 m s−1 or

10 kn, the half barbs representing

2.5 m s−1 or 5 kn and the solid

pennant representing 25 m s−1

or 50 kn. All pennants and barbs lie

to the left (clockwise) of the wind

shaft in the northern hemisphere

and to the right (counter clockwise)

of the wind shaft in the southern

hemisphere. Barbs are at an angle

of 110° to 130° from the wind shaft.

Pennants are triangles with their

bases on the wind shaft. A calm

should be indicated by a circle

drawn around the weather station

circle. Missing wind speed should

be indicated by placing an "x" at the

end of the wind shaft in lieu of the

wind barbs.

Note that the source of

meteorological information may be

AIS ASM function identifier 26 or 31

(SN.1/Circ.289), etc.

Tidal and water level information

symbol consist of three parts:

•

tidal symbol;

•

tidal flow symbol;

•

tidal gauge symbol.

The tidal symbol should be

presented as a diamond with "T"

Tidal and water

inscribed inside it. The diamond

should be centred at the position

level information

derived from the site location report

binary message. The diamond

should be drawn using a thin solid

line style and using the same basic

colour as AIS AtoN.

The optional tidal flow part of the

symbol should be used to represent

tidal speed and direction. If tidal

speed and direction is not available

Topic

Symbol

Description

then there should be no tidal flow

symbol. The tidal flow symbol

should be drawn to the direction of

the tidal current and using the same

basic colour as AIS AtoN.

The optional tidal gauge part of the

symbol should be used to represent

availability of water level

information. If water level is not

available then there should be no

tidal gauge symbol. The tidal gauge

symbol should be drawn using a

thick solid line style, transparent fill

and using the same basic colour as

AIS AtoN.

Note that the source of tidal

information may be AIS ASM

function identifier 31

(SN.1/Circ.289), etc.

Topic

Symbol

Description

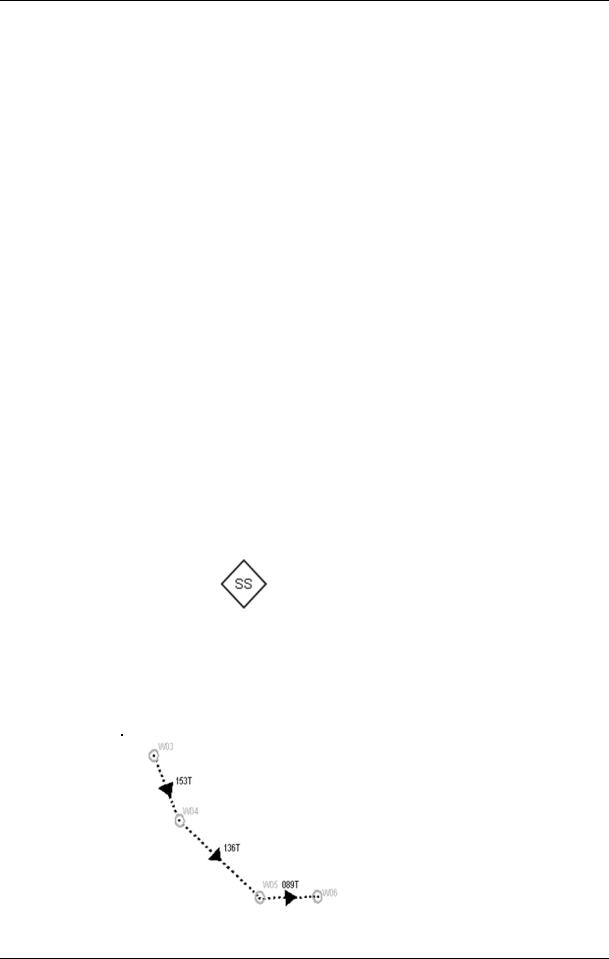

Signal station should be presented

as a diamond centred at the

reported position of the signal

station. The sides of the diamond

should be the same basic colour as

the AIS AtoN symbol.

The symbol should be labelled with

Signal station

text "SS" centred in the diamond

and the colour of the label should be

the same colour as the symbol.

Note that a signal station is a station

capable of transmitting marine traffic

signals. The source of signal station

may be AIS ASM function identifier

19 (SN.1/Circ.289), etc.

Route information is as a series of

waypoints connected by one or

more legs. Leg lines on the route

information should be drawn using a

Route

thin dotted line style. They should

information

have a centred solid triangle with

broadcast

equal length of each side and

should be the same basic colour as

the AIS AtoN symbol. Solid triangle

is centred on visible part of each

leg.

Leg lines on the route information

may be labelled adjacent to their

line with their course. The label

should not interfere with text used to

label the waypoint. Alphanumeric

text used to label a leg line should

be the same colour as the leg line.

The colour of route type "mandatory

route" should be different from other

route types.

Note that the source of route

information may be AIS ASM

function identifier 27 or 28

(SN.1/Circ.289), etc.

Topic

Symbol

Description

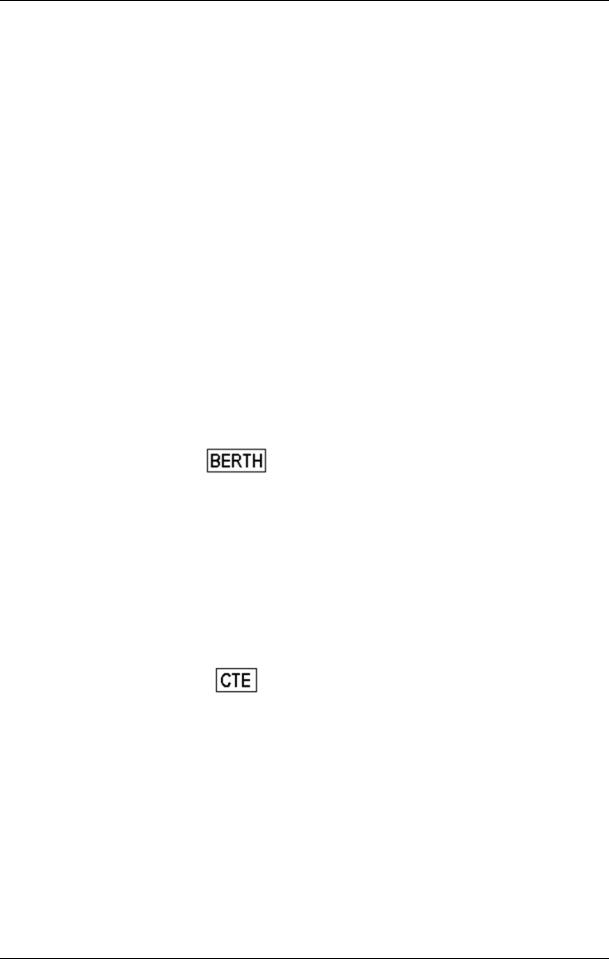

Berthing assignment should be

presented as a box with the "BERTH"

inscribed inside it. The box should be

centred at the position derived from the

berthing data message. The box should

Berthing data

be drawn using a thick solid line style

and should be the same basic colour as

the AIS AtoN symbol.

Note that the source of berthing data

may be AIS ASM function identifier 20

(SN.1/Circ.289), etc.

Clearance time to enter port should be

presented as a box with the "CTE"

inscribed inside it. The box should be

centred at the position derived from

clearance time to enter port data

Clearance time to

message. The box should be drawn

using a thick solid line style and should

enter port

be the same basic colour as the AIS

AtoN symbol.

Note that the source of clearance to

enter port may be AIS ASM function

identifier 18 (SN.1/Circ.289), etc.
