DISCRETE SEMICONDUCTORS
BF245A; BF245B; BF245C
N-channel silicon field-effect transistors
Product specification |
1996 Jul 30 |
Supersedes data of April 1995
File under Discrete Semiconductors, SC07
Philips Semiconductors |
|
Product specification |
|
|
|
|
|
|
N-channel silicon field-effect transistors |
BF245A; BF245B; BF245C |
|
|
|
|
|
|
|
FEATURES |
PINNING |
|
·Interchangeability of drain and source connections
·Frequencies up to 700 MHz.
APPLICATIONS
· LF, HF and DC amplifiers.
DESCRIPTION
General purpose N-channel symmetrical junction field-effect transistors in a plastic TO-92 variant package.
CAUTION
The device is supplied in an antistatic package. The gate-source input must be protected against static discharge during transport or handling.
PIN |
SYMBOL |
DESCRIPTION |
|
|
|
1 |
d |
drain |
2 |
s |
source |
3 |
g |
gate |
|
|
|
1
handbook, halfpage2 |
|
3 |
d |
g |
s |
|
|
MAM257 |
|

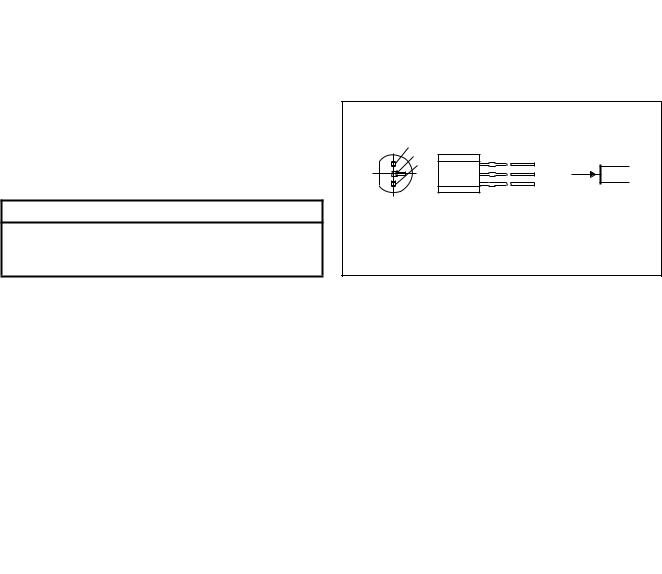

Fig.1 Simplified outline (TO-92 variant) |
|
and symbol. |
|
QUICK REFERENCE DATA
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
|
VDS |
drain-source voltage |
|
- |
- |
±30 |
V |
VGSoff |
gate-source cut-off voltage |
ID = 10 nA; VDS = 15 V |
-0.25 |
- |
-8 |
V |
VGSO |
gate-source voltage |
open drain |
- |
- |
-30 |
V |
IDSS |
drain current |
VDS = 15 V; VGS = 0 |
|
|
|
|
|
BF245A |
|
2 |
- |
6.5 |
mA |
|
BF245B |
|
6 |
- |
15 |
mA |
|
BF245C |
|
12 |
- |
25 |
mA |
|
|
|
|
|
|
|
Ptot |
total power dissipation |
Tamb = 75 °C |
- |
- |
300 |
mW |
ïyfsï |
forward transfer admittance |
VDS = 15 V; VGS = 0; |
3 |
- |
6.5 |
mS |
|
|
f = 1 kHz; Tamb = 25 °C |
|
|
|
|
Crs |
reverse transfer capacitance |
VDS = 20 V; VGS = -1 V; |
- |
1.1 |
- |
pF |
|
|
f = 1 MHz; Tamb = 25 °C |
|
|
|
|
1996 Jul 30 |
2 |
Philips Semiconductors |
|
|
|
Product specification |
|||
|
|
|
|
|
|
|
|
N-channel silicon field-effect transistors |
BF245A; BF245B; BF245C |
||||||
|
|
|
|
|
|
|
|
LIMITING VALUES |
|
|
|
|
|
||
In accordance with the Absolute Maximum Rating System (IEC 134). |
|
|
|
|
|||
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
||
|
|
|
|
|
|
|
|
VDS |
drain-source voltage |
|
|
− |
±30 |
V |
|
VGDO |
gate-drain voltage |
open source |
|
− |
−30 |
V |
|
VGSO |
gate-source voltage |
open drain |
|
− |
−30 |
V |
|
ID |
drain current |
|
|
− |
25 |
mA |
|
IG |
gate current |
|
|
− |
10 |
mA |
|
Ptot |
total power dissipation |
up to Tamb = 75 °C; |
|
− |
300 |
mW |
|
|
|
|
up to Tamb = 90 °C; note 1 |
− |
300 |
mW |
|
Tstg |
storage temperature |
|
|
−65 |
+150 |
°C |
|
Tj |
operating junction temperature |
|
|
− |
150 |
°C |
|
Note
1.Device mounted on a printed-circuit board, minimum lead length 3 mm, mounting pad for drain lead minimum 10 mm × 10 mm.
THERMAL CHARACTERISTICS
SYMBOL |
PARAMETER |
CONDITIONS |
VALUE |
UNIT |
|
|
|
|
|
|
|
Rth j-a |
thermal resistance from junction to ambient |
in free air |
250 |
K/W |
|
|
|
thermal resistance from junction to ambient |
|
200 |
K/W |
|
|
|
|
|
|
STATIC CHARACTERISTICS
Tj = 25 °C; unless otherwise specified.
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
|
|
V(BR)GSS |
gate-source breakdown voltage |
IG = −1 μA; VDS = 0 |
−30 |
− |
V |
|
VGSoff |
gate-source cut-off voltage |
ID = 10 nA; VDS = 15 V |
−0.25 |
−8.0 |
V |
|
VGS |
gate-source voltage |
ID = 200 μA; VDS = 15 V |
|
|
|
|
|
BF245A |
|
−0.4 |
−2.2 |
V |
|
|
BF245B |
|
−1.6 |
−3.8 |
V |
|
|
BF245C |
|
−3.2 |
−7.5 |
V |
|
|
|
|
|
|
|
|
IDSS |
drain current |
VDS = 15 V; VGS = 0; note 1 |
|
|
|
|
|
BF245A |
|
2 |
6.5 |
mA |
|
|
BF245B |
|
6 |
15 |
mA |
|
|
BF245C |
|
12 |
25 |
mA |
|
|
|
|
|
|
|
|
IGSS |
gate cut-off current |
VGS = −20 V; VDS = 0 |
− |
−5 |
nA |
|
|
|
|
VGS = −20 V; VDS = 0; Tj = 125 °C |
− |
−0.5 |
μA |
Note
1. Measured under pulse conditions: tp = 300 μs; δ ≤ 0.02.
1996 Jul 30 |
3 |
Philips Semiconductors |
|
|
|
|
Product specification |
||||
|
|
|
|
|
|
|
|
|
|
N-channel silicon field-effect transistors |
BF245A; BF245B; BF245C |
||||||||
|
|
|
|
|
|
|
|
|
|
DYNAMIC CHARACTERISTICS |
|
|
|
|
|
|
|
||
Common source; Tamb = 25 °C; unless otherwise specified. |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
|
CONDITIONS |
|
MIN. |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
|
|
|
||
Cis |
input capacitance |
VDS = 20 V; VGS = -1 V; f = 1 MHz |
- |
4 |
- |
pF |
|||
Crs |
reverse transfer capacitance |
VDS = 20 V; VGS = -1 V; f = 1 MHz |
- |
1.1 |
- |
pF |
|||
Cos |
output capacitance |
VDS = 20 V; VGS = -1 V; f = 1 MHz |
- |
1.6 |
- |
pF |
|||
gis |
input conductance |
VDS = 15 V; VGS = 0; f = 200 |
MHz |
- |
250 |
- |
mS |
||
gos |
output conductance |
VDS = 15 V; VGS = 0; f = 200 |
MHz |
- |
40 |
- |
mS |
||
ïyfsï |
forward transfer admittance |
VDS = 15 V; VGS = 0; f = 1 kHz |
3 |
- |
6.5 |
mS |
|||
|
|
|
VDS = 15 V; VGS = 0; f = 200 MHz |
- |
6 |
- |
mS |
||
ïyrsï |
reverse transfer admittance |
VDS = 15 |
V; VGS = 0; f = 200 |
MHz |
- |
1.4 |
- |
mS |
|
ïyosï |
output admittance |
VDS = 15 |
V; VGS = 0; f = 1 kHz |
- |
25 |
- |
mS |
||
fgfs |
cut-off frequency |
VDS = 15 |
V; VGS = 0; gfs = 0.7 of its |
- |
700 |
- |
MHz |
||
|
|
|
value at 1 kHz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
F |
noise figure |
VDS = 15 |
V; VGS = 0; f = 100 |
MHz; |
- |
1.5 |
- |
dB |
|
|
|
|
RG = 1 kW (common source); |
|
|
|
|
||
|
|
|
input tuned to minimum noise |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
−10 |
|
|
|
MGE785 |
6 |
|
|
MGE789 |
|
|
|
|
|
|
|
||
handbook, halfpage |
|
|
|
|
handbook, halfpage |
|
|
|
IGSS |
|
|
|
|
ID |
|
|
|
|
|
|
|
(mA) |
|
|
|
|
(nA) |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
−1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
|
|
−10−1 |
|
typ |
|
|
3 |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
2 |
|
|
|
−10−2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
−10−3 |
|
|
|
|
0 |
|
|
|
0 |
50 |
100 |
° |
150 |
−4 |
−2 |
VGS (V) |
0 |
|
|
|
Tj ( C) |
|
|
|
|
|
VDS = 0; VGS = −20 V. |
|
|
|
|
VDS = 15 V; Tj = 25 °C. |
|
|
|

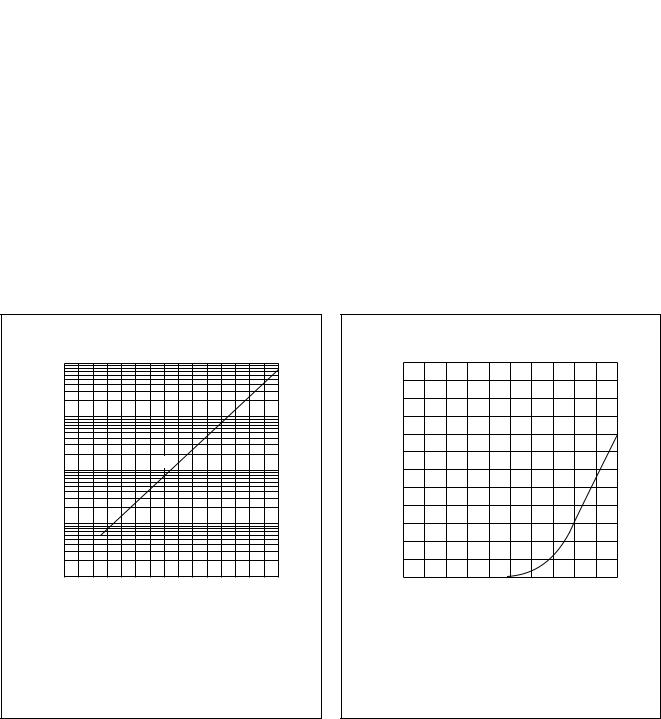

Fig.2 Gate leakage current as a function of |
Fig.3 Transfer characteristics for BF245A; |
junction temperature; typical values. |
typical values. |
1996 Jul 30 |
4 |
Philips Semiconductors |
Product specification |
|
|
N-channel silicon field-effect transistors |
BF245A; BF245B; BF245C |
|
|
MBH555
6
handbook, halfpage
ID (mA)
5
4 |
|
|
VGS = 0 V |
|
|
|
|
|
|
|
|
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
−0.5 V |
|
|
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
−1 V |
|
|
|
|
|
|
|
|
0 |
|
|
−1.5 V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
10 |
VDS (V) |
20 |
||
VDS = 15 V; Tj = 25 °C.

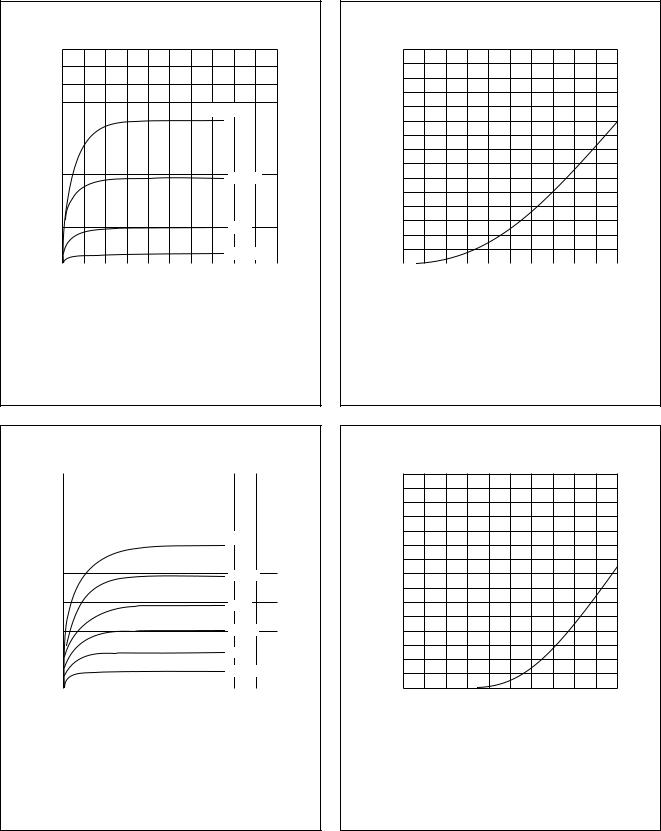

Fig.4 Output characteristics for BF245A; typical values.
MBH553
15 |
|
|
|
|
|
|
|
|
|
|
|
|
handbook, halfpage |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ID |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(mA) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
|
|
|
|
|
V |
GS = |
0 V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
− |
0.5 |
V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
|
|
|
|
|
|
− |
1 V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
− |
1.5 |
V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
−2 V |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
−2.5 V |
|
|||
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
10 |
VDS (V) |
20 |
|||||||
VDS = 15 V; Tj = 25 °C.
Fig.6 Output characteristics for BF245B; typical values.
MGE787
15 handbook, halfpage
ID (mA)
10
5
0− |
|
|
|
|
|
4 |
−2 |
VGS (V) |
0 |
||
VDS = 15 V; Tj = 25 °C.
Fig.5 Transfer characteristics for BF245B; typical values.
MGE788
30 handbook, halfpage
ID (mA)
20
10
0 |
|
|
|
−10 |
−5 |
VGS (V) |
0 |
VDS = 15 V; Tj = 25 °C.
Fig.7 Transfer characteristics for BF245C; typical values.
