DISCRETE SEMICONDUCTORS
M3D176
PLVA400A series
Low-voltage avalanche regulator diodes
Product specification |
1996 Apr 26 |
Supersedes data of April 1992
File under Discrete Semiconductors, SC01
Philips Semiconductors |
Product specification |
|
|
|
|
Low-voltage avalanche regulator diodes |
PLVA400A series |
|
|
|
|
FEATURES
·Very low dynamic impedance at low currents: approximately 1¤20 of conventional series
·Hard breakdown knee
·Low noise: approximately 1¤10 of conventional series
·Total power dissipation: max. 400 mW
·Small tolerances of VZ
·Working voltage range: nom. 5.0 to 6.8 V
·Non-repetitive peak reverse power dissipation: max. 30 W.
APPLICATIONS
·Low current, low power, low noise applications
·CMOS RAM back-up circuits
·Voltage stabilizers
·Voltage limiters
·Smoke detector relays.
LIMITING VALUES
DESCRIPTION
High performance voltage regulator diodes in hermetically sealed leaded glass SOD27 (DO-35) packages.
The series consists of PLVA450A to PLVA468A.
handbook, halfpage k |
a |
|
MAM239 |
Fig.1 Simplified outline (SOD27; DO-35) and symbol.
MARKING
TYPE NUMBER |
MARKING CODE |
|
|
PLVA450A |
450APH |
|
|
PLVA453A |
453APH |
|
|
PLVA456A |
456APH |
|
|
PLVA459A |
459APH |
|
|
PLVA462A |
462APH |
|
|
PLVA465A |
465APH |
|
|
PLVA468A |
468APH |
|
|
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
IF |
continuous forward current |
|
- |
250 |
mA |
IZRM |
repetitive peak working current |
tp = 100 ms; d = 10% |
|
250 |
mA |
Ptot |
total power dissipation |
Ttp £ 55 °C; note 1 |
- |
400 |
mW |
PZSM |
non-repetitive peak reverse power |
tp = 100 ms; Tj = 150 °C |
|
30 |
W |
|
dissipation |
|
|
|
|
|
|
|
|
|
|
Tstg |
storage temperature |
|
-65 |
+200 |
°C |
Tj |
junction temperature |
|
- |
175 |
°C |
Note
1. Lead length 8 mm.
1996 Apr 26 |
2 |
Philips Semiconductors |
|
|
|
|
Product specification |
|||
|
|
|
|
|
|
|
|
|
Low-voltage avalanche regulator diodes |
|
PLVA400A series |
||||||
|
|
|
|
|
|
|
|
|
ELECTRICAL CHARACTERISTICS |
|
|
|
|
|
|
|
|
Tj = 25 °C; unless otherwise specified. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
|
TYP. |
|
MAX. |
UNIT |
|
|
|
|
|
|
|
|
|
VF |
forward voltage |
IF = 10 mA |
− |
|
− |
|
0.9 |
V |
VZ |
working voltage |
IZ = 250 μA |
|
|
|
|
|
|
|
PLVA450A |
|
4.80 |
|
5.00 |
|
5.20 |
V |
|
PLVA453A |
|
5.10 |
|
5.30 |
|
5.50 |
V |
|
PLVA456A |
|
5.40 |
|
5.60 |
|
5.80 |
V |
|
PLVA459A |
|
5.70 |
|
5.90 |
|
6.10 |
V |
|
PLVA462A |
|
6.00 |
|
6.20 |
|
6.40 |
V |
|
PLVA465A |
|
6.30 |
|
6.50 |
|
6.70 |
V |
|
PLVA468A |
|
6.60 |
|
6.80 |
|
7.00 |
V |
|
|
|
|
|
|
|
|
|
VZ |
working voltage |
IZ = 10 μA |
|
|
|
|
|
|
|
PLVA450A |
|
− |
|
4.30 |
|
− |
V |
|
PLVA453A |
|
− |
|
5.20 |
|
− |
V |
|
PLVA456A |
|
− |
|
5.51 |
|
− |
V |
|
PLVA459A |
|
− |
|
5.85 |
|
− |
V |
|
PLVA462A |
|
− |
|
6.19 |
|
− |
V |
|
PLVA465A |
|
− |
|
6.49 |
|
− |
V |
|
PLVA468A |
|
− |
|
6.80 |
|
− |
V |
|
|
|
|
|
|
|
|
|
RZ |
dynamic resistance |
1 kHz superimposed; |
|
|
|
|
|
|
|
PLVA450A |
IZAC is 10% of IZDC; IZ = 250 μA |
− |
|
− |
|
700 |
Ω |
|
PLVA453A |
|
− |
|
− |
|
250 |
Ω |
|
PLVA456A to PLVA468A |
|
− |
|
− |
|
100 |
Ω |
|
|
|
|
|
|
|
|
|
SZ |
temperature coefficient |
IZ = 250 μA |
|
|
|
|
|
|
|
PLVA450A |
|
− |
|
0.20 |
|
− |
mV/K |
|
PLVA453A |
|
− |
|
1.60 |
|
− |
mV/K |
|
PLVA456A |
|
− |
|
1.90 |
|
− |
mV/K |
|
PLVA459A |
|
− |
|
2.40 |
|
− |
mV/K |
|
PLVA462A |
|
− |
|
2.65 |
|
− |
mV/K |
|
PLVA465A |
|
− |
|
2.90 |
|
− |
mV/K |
|
PLVA468A |
|
− |
|
3.40 |
|
− |
mV/K |
|
|
|
|
|
|
|
|
|
IR |
reverse current |
VR = 80% VZ nominal |
|
|
|
|
|
|
|
PLVA450A |
|
− |
|
− |
|
20000 |
nA |
|
PLVA453A |
|
− |
|
− |
|
5000 |
nA |
|
PLVA456A |
|
− |
|
− |
|
1000 |
nA |
|
PLVA459A |
|
− |
|
− |
|
500 |
nA |
|
PLVA462A |
|
− |
|
− |
|
100 |
nA |
|
PLVA465A |
|
− |
|
− |
|
50 |
nA |
|
PLVA468A |
|
− |
|
− |
|
10 |
nA |
|
|
|
|
|
|
|
|
|
1996 Apr 26 |
3 |
Philips Semiconductors |
|
|
|
|
|
|
Product specification |
|||||
|
|
|
|
|
|
|
|
|
|
|
||
Low-voltage avalanche regulator diodes |
|
PLVA400A series |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
|
CONDITIONS |
|
MIN. |
|
TYP. |
|
MAX. |
UNIT |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
IR |
reverse current |
VR = 50% VZ nominal |
|
|
|
|
|
|
|
|
||
|
PLVA450A |
|
|
|
|
− |
|
34 |
|
− |
nA |
|
|
PLVA453A |
|
|
|
|
− |
|
22 |
|
− |
nA |
|
|
PLVA456A |
|
|
|
|
− |
|
1.1 |
|
− |
nA |
|
|
PLVA459A |
|
|
|
|
− |
|
0.9 |
|
− |
nA |
|
|
PLVA462A |
|
|
|
|
− |
|
0.9 |
|
− |
nA |
|
|
PLVA465A |
|
|
|
|
− |
|
0.9 |
|
− |
nA |
|
|
PLVA468A |
|
|
|
|
− |
|
0.8 |
|
− |
nA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IR |
reverse current |
VR = 90% VZ nominal |
|
|
|
|
|
|
|
|
||
|
PLVA450A |
|
|
|
|
− |
|
21 |
|
− |
μA |
|
|
PLVA453A |
|
|
|
|
− |
|
3.5 |
|
− |
μA |
|
|
PLVA456A |
|
|
|
|
− |
|
1.3 |
|
− |
μA |
|
|
PLVA459A |
|
|
|
|
− |
|
1.0 |
|
− |
μA |
|
|
PLVA462A |
|
|
|
|
− |
|
0.05 |
|
− |
μA |
|
|
PLVA465A |
|
|
|
|
− |
|
0.04 |
|
− |
μA |
|
|
PLVA468A |
|
|
|
|
− |
|
0.006 |
|
− |
μA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VZ |
line regulation |
|
|
|
|
|
|
|
|
|
|
|
|
PLVA459A to PLVA468A |
ILO = 10 μA; IHi = 1 mA |
|
− |
|
− |
|
0.1 |
V |
|||
|
PLVA456A |
ILO = 50 μA; IHi = 1 mA |
|
− |
|
− |
|
0.1 |
V |
|||
|
PLVA450A |
ILO = 100 μA; IHi = 1 mA |
|
− |
|
− |
|
0.4 |
V |
|||
|
PLVA453A |
ILO = 100 μA; IHi = 1 mA |
|
− |
|
− |
|
0.2 |
V |
|||
Vn |
noise voltage density |
f = 1 kHz; B = 1 kHz; IZ = 250 μA |
|
− |
|
− |
|
1.0 |
μV |
|||
|
|
|
|
|
|
|
|
|
|
|
|
----------- |
|
|
|
|
|
|
|
|
|
|
|
|
Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|
THERMAL CHARACTERISTICS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
SYMBOL |
PARAMETER |
|
|
CONDITIONS |
|
|
VALUE |
|
|
UNIT |
||
|
|
|
|
|
|
|
|
|
|
|
||
Rth j-tp |
thermal resistance from junction to tie-point |
|
lead length 8 mm. |
|
|
300 |
|
|
|
K/W |
||
Rth j-a |
thermal resistance from junction to ambient |
|
lead length max. |
|
|
380 |
|
|
|
K/W |
||
1996 Apr 26 |
4 |
Philips Semiconductors |
Product specification |
|
|
Low-voltage avalanche regulator diodes |
PLVA400A series |
|
|

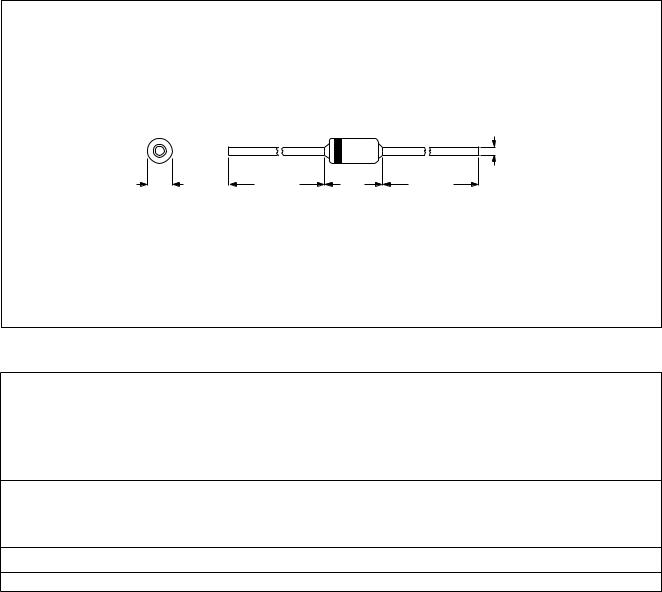

PACKAGE OUTLINE |
|
dbook, full pagewidth |
|
|
|
0.56 |
|
|
|
|
max |
1.85 |
25.4 min |
4.25 |
25.4 min |
MLA428 - 1 |
max |
max |
|
||
|
|
|
Dimensions in mm.
Fig.2 SOD27 (DO-35).
DEFINITIONS
Data sheet status
Objective specification |
This data sheet contains target or goal specifications for product development. |
|
|
Preliminary specification |
This data sheet contains preliminary data; supplementary data may be published later. |
|
|
Product specification |
This data sheet contains final product specifications. |
|
|
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.
