DISCRETE SEMICONDUCTORS
book, halfpage
M3D088
BAS116
Low-leakage diode
Product specification |
1996 Mar 13 |
Supersedes data of June 1994
File under Discrete Semiconductors, SC01
Philips Semiconductors |
|
Product specification |
|
|
|
|
|
Low-leakage diode |
|
BAS116 |
|
|
|
|
|
|
|
|
|
FEATURES |
PINNING |
|
|
∙ Plastic SMD package |
|
|
|
PIN |
DESCRIPTION |
||
∙ Low leakage current: typ. 3 pA |
|
|
|
1 |
anode |
||
|
|||
∙ Switching time: typ. 0.8 μs |
|
|
|
2 |
not connected |
||
∙ Continuous reverse voltage: |
|
|
|
3 |
cathode |
||
max. 75 V |
|
|
|
|
|
∙Repetitive peak reverse voltage: max. 85 V
∙Repetitive peak forward current: max. 500 mA.
APPLICATION
∙Low leakage current applications in surface mounted circuits.
DESCRIPTION
Epitaxial medium-speed switching diode with a low leakage current in a small plastic SOT23 SMD package.
handbook, 4 columns |
|
|
2 |
|
|
1 |
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
n.c. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
|
|
|
|
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Top view |
|
|
|
|
|
|
|
|
|
|
MAM106 |
||||
Marking code: JVp.
Fig.1 Simplified outline (SOT23) and symbol.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
VRRM |
repetitive peak reverse voltage |
|
− |
85 |
V |
VR |
continuous reverse voltage |
|
− |
75 |
V |
IF |
continuous forward current |
see Fig.2; note 1 |
− |
215 |
mA |
IFRM |
repetitive peak forward current |
|
− |
500 |
mA |
IFSM |
non-repetitive peak forward current |
square wave; Tj = 25 °C prior to surge; |
|
|
|
|
|
see Fig.4 |
|
|
|
|
|
tp = 1 μs |
− |
4 |
A |
|
|
tp = 1 ms |
− |
1 |
A |
|
|
tp = 1 s |
− |
0.5 |
A |
Ptot |
total power dissipation |
Tamb = 25 °C; note 1 |
− |
250 |
mW |
Tstg |
storage temperature |
|
−65 |
+150 |
°C |
Tj |
junction temperature |
|
− |
150 |
°C |
Note
1. Device mounted on a FR4 printed-circuit board.
1996 Mar 13 |
2 |
Philips Semiconductors |
|
|
Product specification |
|||
|
|
|
|
|
|
|
Low-leakage diode |
|
|
|
BAS116 |
||
|
|
|
|
|
|
|
ELECTRICAL CHARACTERISTICS |
|
|
|
|
|
|
Tj = 25 °C unless otherwise specified. |
|
|
|
|
|
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
CONDITIONS |
TYP. |
|
MAX. |
UNIT |
|
|
|
|
|
|
|
VF |
forward voltage |
see Fig.3 |
|
|
|
|
|
|
IF = 1 mA |
− |
|
900 |
mV |
|
|
IF = 10 mA |
− |
|
1000 |
mV |
|
|
IF = 50 mA |
− |
|
1100 |
mV |
|
|
IF = 150 mA |
− |
|
1250 |
mV |
IR |
reverse current |
see Fig.5 |
|
|
|
|
|
|
VR = 75 V |
0.003 |
|
5 |
nA |
|
|
VR = 75 V; Tj = 150 °C |
3 |
|
80 |
nA |
Cd |
diode capacitance |
f = 1 MHz; VR = 0; see Fig.6 |
2 |
|
− |
pF |
trr |
reverse recovery time |
when switched from IF = 10 mA to |
0.8 |
|
3 |
μs |
|
|
IR = 10 mA; RL = 100 Ω; |
|
|
|
|
|
|
measured at IR = 1 mA; see Fig.7 |
|
|
|
|
THERMAL CHARACTERISTICS
SYMBOL |
PARAMETER |
|
CONDITIONS |
VALUE |
UNIT |
|
|
|
|
|
|
Rth j-tp |
thermal resistance from junction to tie-point |
|
|
330 |
K/W |
Rth j-a |
thermal resistance from junction to ambient |
note 1 |
|
500 |
K/W |
Note
1. Device mounted on a FR4 printed-circuit board.
1996 Mar 13 |
3 |
Philips Semiconductors |
Product specification |
|
|
Low-leakage diode |
BAS116 |
|
|
GRAPHICAL DATA |
|
|
|
|
|
|
|
|
|
|
MLB755 |
300 |
|
|
|
MLB752 - 1 |
|
300 |
|
|
|
|
|
|||
|
|
|
|
|
|
|
||
|
|
|
handbook, halfpage |
|
|
|
|
|
handbook, halfpage |
|
|
|
|
|
|
|
|
I F |
|
|
|
I F |
|
|
|
|
(mA) |
|
|
|
(mA) |
|
|
|
|
200 |
|
|
|
200 |
|
(1) |
(2) |
(3) |
|
|
|
|
|
|
|||
100 |
|
|
|
100 |
|
|
|
|
0 |
|
|
|
0 |
|
|
|
|
0 |
100 |
Tamb ( oC) |
200 |
|
|
|
|
|
0 |
0.4 |
0.8 |
1.2 |
1.6 |
||||
|
|
|
|
|
|
|
|
VF (V) |
|
(1) |
Tj = 150 °C; typical values. |
|||
Device mounted on a FR4 printed-circuit board. |
(2) |
Tj |
= 25 |
°C; typical values. |
|
(3) |
Tj = 25 |
°C; maximum values. |
|||
|
|||||

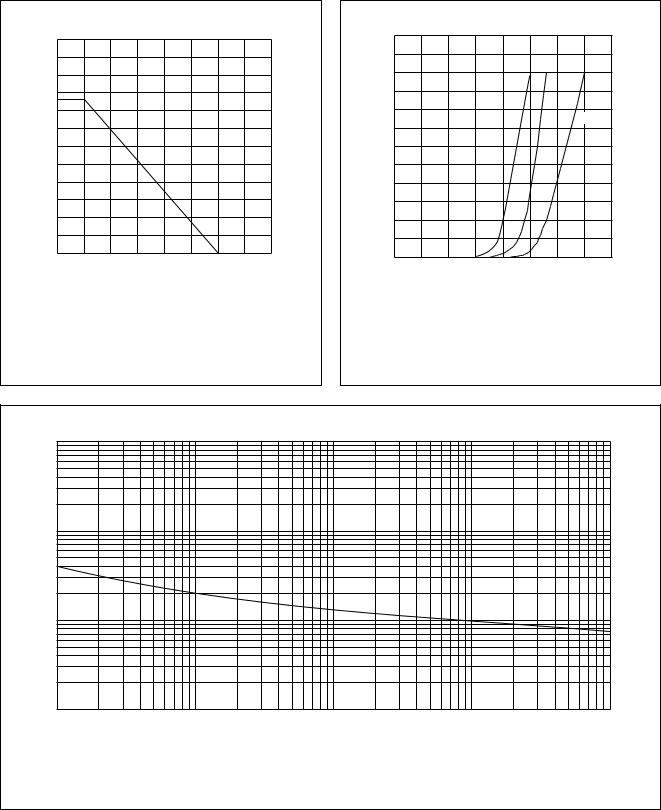

Fig.2 Maximum permissible continuous forward |
Fig.3 |
Forward current as a function of forward |
|||
current as a function of ambient temperature. |
|
|
voltage. |
||
MBG704
102
IFSM
(A)
10
1
10−1
1 |
10 |
102 |
103 |
tp (μs) |
104 |
|
|
|
|
|
Based on square wave currents; Tj = 25 °C prior to surge.
Fig.4 Maximum permissible non-repetitive peak forward current as a function of pulse duration.
1996 Mar 13 |
4 |
Philips Semiconductors |
Product specification |
|
|
Low-leakage diode |
BAS116 |
|
|
10 |
2 |
|
|
MLB754 |
|
|
|
|
MBG526 |
||
|
|
|
|
|
2 |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|||
handbook, halfpage |
|
|
|
|
|
handbook, halfpage |
|
|
|
|
|
I R |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(nA) |
|
|
|
|
|
|
Cd |
|
|
|
|
10 |
(1) |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(pF) |
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
10 1 |
|
|
|
|
|
|
|
|
|
|
|
10 2 |
(2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
10 3 |
|
|
|
|
|
0 |
|
|
|
VR (V) 20 |
|
|
0 |
50 |
100 |
150 |
o |
200 |
0 |
5 |
10 |
15 |
|
|
|
|
|
T j ( |
|
C) |
|
|
|
|
|
VR = 75 V. |
|
|
|
|
|
f = 1 MHz; Tj = 25 °C. |
|
|
|
||

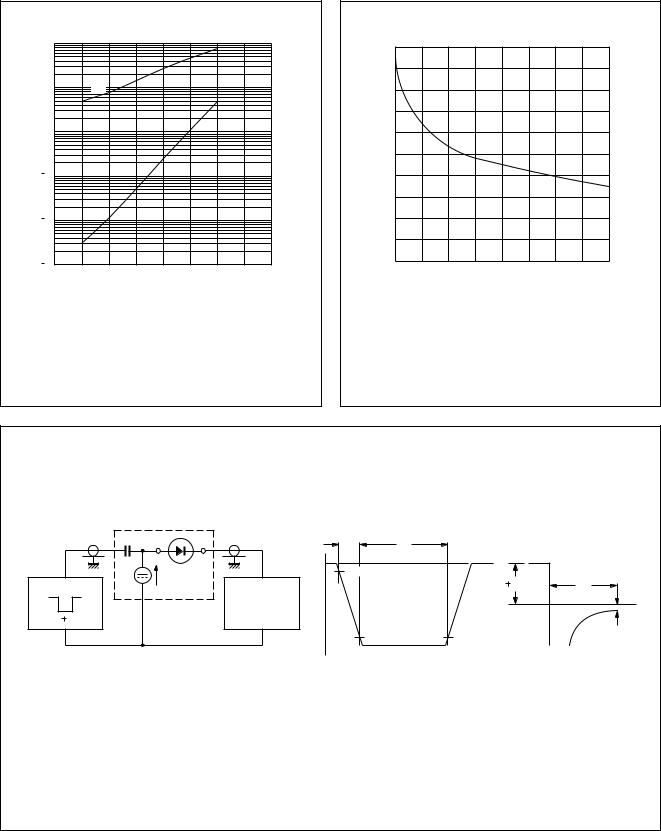

Fig.5 Reverse current as a function of junction |
Fig.6 Diode capacitance as a function of reverse |
temperature. |
voltage; typical values. |
|
|
|
|
t r |
t p |
|
|
|
|
|
|
t |
|
|
|
|
D.U.T. |
10% |
|
|
R |
= 50 Ω |
IF |
|
I F |
t rr |
|
S |
|
|
|
SAMPLING |
|
t |
|
|
|
|
OSCILLOSCOPE |
|
|
|
|
|
|
|
|
|
V = VR |
IF x R S |
|
R i = 50 Ω |
|
|
|
|
|
|
|
|
90% |
(1) |
|
|
|
|
VR |
|
|
|
|
|
|
|
|
|
|
|
|
|
MGA881 |
|
|
input signal |
output signal |
Fig.7 Reverse recovery time test circuit and waveforms.
