Philips Semiconductors |
|
|
Product specification |
|||
|
|
|
|
|
|
|
Hybrid CATV amplifier module |
|
|
BGD702MI |
|||
|
|
|
|
|
|
|
CHARACTERISTICS |
|
|
|
|
||
Bandwidth 40 to 450 MHz; VB = 24 V; Tmb = 35 °C; ZS = ZL = 75 Ω. |
|
|
|
|||
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
|
|
Gp |
power gain |
f = 50 MHz |
18 |
19 |
dB |
|
|
|
|
f = 450 MHz |
18.5 |
− |
dB |
|
|
|
|
|
|
|
SL |
slope cable equivalent |
f = 40 to 450 MHz |
0.2 |
2 |
dB |
|
|
|
|
|
|
|
|
FL |
flatness of frequency response |
f = 40 to 450 MHz |
− |
±0.3 |
dB |
|
|
|
|
|
|
|
|
S11 |
input return losses |
f = 40 to 80 MHz |
20 |
− |
dB |
|
|
|
|
f = 80 to 160 MHz |
18.5 |
− |
dB |
|
|
|
|
|
|
|
|
|
|
f = 160 to 320 MHz |
17 |
− |
dB |
|
|
|
|
|
|
|
|
|
|
f = 320 to 450 MHz |
16 |
− |
dB |
|
|
|
|
|
|
|
S22 |
output return losses |
f = 40 to 80 MHz |
20 |
− |
dB |
|
|
|
|
f = 80 to 160 MHz |
18.5 |
− |
dB |
|
|
|
|
|
|
|
|
|
|
f = 160 to 320 MHz |
17 |
− |
dB |
|
|
|
|
|
|
|
|
|
|
f = 320 to 450 MHz |
16 |
− |
dB |
|
|
|
|
|
|
|
S21 |
phase response |
f = 50 MHz |
−45 |
+45 |
deg |
|
CTB |
composite triple beat |
60 channels flat; |
− |
−68 |
dB |
|
|
|
|
Vo = 46 dBmV; |
|
|
|
|
|
|
measured at 445.25 MHz |
|
|
|
|
|
|
|
|
|
|
Xmod |
cross modulation |
60 channels flat; |
− |
−65 |
dB |
|
|
|
|
Vo = 46 dBmV; |
|
|
|
|
|
|
measured at 55.25 MHz |
|
|
|
|
|
|
|
|
|
|
CSO |
composite second order distortion |
60 channels flat; |
− |
−65 |
dB |
|
|
|
|
Vo = 46 dBmV; |
|
|
|
|
|
|
measured at 446.5 MHz |
|
|
|
|
|
|
|
|
|
|
d2 |
second order distortion |
note 1 |
− |
−75 |
dB |
|
Vo |
output voltage |
dim = −60 dB; note 2 |
67 |
− |
dBmV |
|
F |
noise figure |
f = 50 MHz |
− |
5.5 |
dB |
|
|
|
|
|
|
|
|
|
|
|
f = 450 MHz |
− |
7 |
dB |
|
|
|
|
|
|
|
Itot |
total current consumption (DC) |
note 3 |
− |
435 |
mA |
|
Notes
1.fp = 55.25 MHz; Vp = 46 dBmV; fq = 391.25 MHz; Vq = 46 dBmV; measured at fp + fq = 446.5 MHz.
2.Measured according to DIN45004B:
fp = 440.25 MHz; Vp = Vo;
fq = 447.25 MHz; Vq = Vo −6 dB; fr = 449.25 MHz; Vr = Vo −6 dB;
measured at fp + fq − fr = 438.25 MHz.
3.The module normally operates at VB = 24 V, but is able to withstand supply transients up to 30 V.
1996 Jul 15 |
6 |
Philips Semiconductors |
Product specification |
|
|
Hybrid CATV amplifier module |
BGD702MI |
|
|

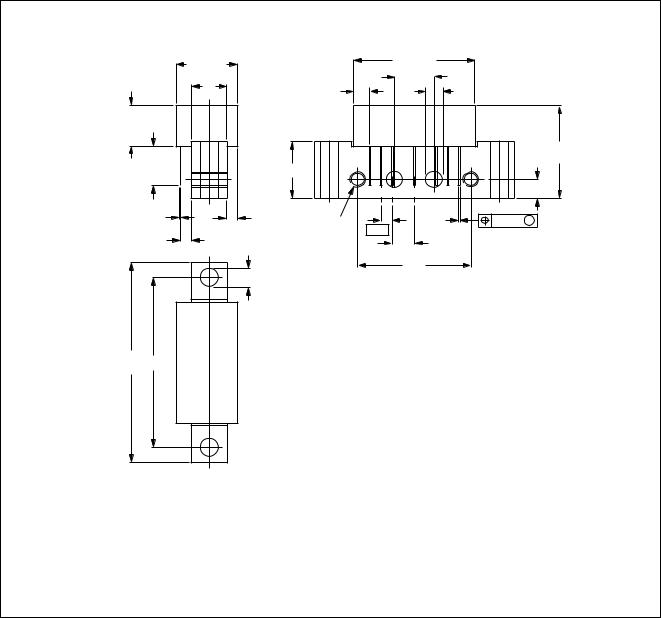

PACKAGE OUTLINE |
|
andbook, full pagewidth |
13.8 max |
|
|
27.2 max |
|
|
|
|
|
|
|
|
|
|
|
|
8 |
3.8 |
|
10.2 |
|
4.15 |
|
|
|
|
|
|
|||
|
|
max |
|
|
|
3.85 |
|
|
9.2 |
|
|
|
|
|
|
|
max |
|
|
|
|
|
|
|
|
|
|
|
|
|
20.8 |
|
8.8 |
|
|
|
|
|
max |
|
|
|
|
|
|
|
|
|
min |
12.7 |
|
|
|
|
|
|
|
1 |
2 3 |
5 |
7 8 |
9 |
4.2 |
|
|
|
0.25 |
UNC 6-32 |
(1) |
0.51(2) |
0.25 M |
2.4 max |
0.38 |
|||
2.54 |
|
2.54 |
|
|
|
(5.08) |
|
|
|
|
|
|
|
|
|
4.15 |
25.4 |
|
MSA318 - 1 |
|
|
|
|
|
|
3.85 |
|
|
|
44.8 max 38.1
Dimensions in mm.
(1)Screw 6-32 UNC-2A available on request.
(2)Leads gold plated.
Fig.2 SOT115J2.
1996 Jul 15 |
7 |
Philips Semiconductors |
|
Product specification |
|
|
|
Hybrid CATV amplifier module |
BGD702MI |
|
|
|
|
DEFINITIONS |
|
|
|
|
|
Data Sheet Status |
|
|
|
|
|
Objective specification |
This data sheet contains target or goal specifications for product development. |
|
|
|
|
Preliminary specification |
This data sheet contains preliminary data; supplementary data may be published later. |
|
|
|
|
Product specification |
This data sheet contains final product specifications. |
|
|
|
|
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.
