Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BUW14 |
|
|
|
|
GENERAL DESCRIPTION
High-voltage, high-speed, glass passivated npn power transistor in a SOT82 envelope intended for use in converters, inverters, switching regulators, motor control systems and switching applications.
QUICK REFERENCE DATA
SYMBOL |
PARAMETER |
CONDITIONS |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
VCESM |
Collector-emitter voltage peak value |
VBE = 0 V |
- |
1000 |
V |
VCEO |
Collector-emitter voltage (open base) |
|
- |
450 |
V |
IC |
Collector current (DC) |
|
- |
0.5 |
A |
ICM |
Collector current peak value |
Tmb ≤ 60 ˚C |
- |
1 |
A |
Ptot |
Total power dissipation |
- |
20 |
W |
|
tf |
Fall time |
|
0.4 |
- |
μs |
PINNING - SOT82 |
PIN CONFIGURATION |
SYMBOL |
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
PIN |
|
|
|
|
DESCRIPTION |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
c |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
1 |
|
|
emitter |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
2 |
|
|
collector |
|
|
|
|
|
|
|
|
|
|
|
|
b |
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
3 |
|
|
base |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
2 |
|
3 |
|
|
|
|
|
|
|
e |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
LIMITING VALUES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
Limiting values in accordance with the Absolute Maximum Rating System (IEC 134) |
|
|
|
|
||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
SYMBOL |
|
PARAMETER |
|
CONDITIONS |
|
MIN. |
|
MAX. |
UNIT |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
VCESM |
|
|
Collector-emitter voltage peak value |
VBE = 0 V |
|
- |
|
1000 |
V |
||||||||||||||
|
VCEO |
|
|
Collector-emitter voltage (open base) |
|
|
|
|
|
|
|
|
|
- |
|
450 |
V |
|||||||
|
IC |
|
|
Collector current (DC) |
|
|
|
|
|
|
|
|
|
|
- |
|
0.5 |
A |
||||||
|
ICM |
|
|
Collector current peak value |
|
|
|
|
|
|
|
|
|
- |
|
1 |
A |
|||||||
|
IB |
|
|
Base current (DC) |
|
|
|
|
|
|
|
|
|
|
- |
|
0.2 |
A |
||||||
|
IBM |
|
|
Base current peak value |
|
|
|
|
|
|
|
|
|
|
- |
|
0.3 |
A |
||||||
|
-I |
|
|
Reverse base current peak value 1 |
|
|
|
|
|
|
|
|
|
- |
|
0.3 |
A |
|||||||
|
BM |
|
|
|
|
|
|
|
Tmb ≤ 60 ˚C |
|
|
|
|
|
|
|||||||||
|
Ptot |
|
|
Total power dissipation |
|
|
- |
|
20 |
W |
||||||||||||||
|
Tstg |
|
|
Storage temperature |
|
|
|
|
|
|
|
|
|
|
-65 |
|
150 |
˚C |
||||||
|
Tj |
|
|
Junction temperature |
|
|
|
|
|
|
|
|
|
|
- |
|
150 |
˚C |
||||||
THERMAL RESISTANCES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
SYMBOL |
|
PARAMETER |
|
CONDITIONS |
|
TYP. |
|
MAX. |
UNIT |
||||||||||||||
|
Rth j-mb |
|
|
Junction to mounting base |
|
- |
|
|
|
|
|
|
|
|
- |
|
4.5 |
K/W |
||||||
|
Rth j-a |
|
|
Junction to ambient |
|
in free air |
|
100 |
|
- |
K/W |
|||||||||||||
1 Turn-off current.
March 1992 |
1 |
Rev 1.000 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BUW14 |
|
|
STATIC CHARACTERISTICS
Tmb = 25 ˚C unless otherwise specified
SYMBOL |
PARAMETER |
CONDITIONS |
|
|
MIN. |
TYP. |
MAX. |
UNIT |
|||
I |
Collector cut-off current 2 |
V = |
0 |
V; V |
CE |
= V |
CESMmax |
- |
- |
100 |
μA |
CES |
|
BE |
|
|
|
|
|
|
|
||
ICES |
|
VBE = |
0 |
V; VCE = VCESMmax; |
- |
- |
1.0 |
mA |
|||
|
|
Tj = 125 ˚C |
|
|
|
|
|
|
|
||
IEBO |
Emitter cut-off current |
VEB = |
5 |
V; IC = 0 A |
- |
- |
1.0 |
mA |
|||
VCEOsust |
Collector-emitter sustaining voltage |
IB = 0 A; IC = 100 mA; |
450 |
- |
- |
V |
|||||
|
|
L = 25 mH |
|
|
|
|
|
|
|
||
VCEsat |
Collector-emitter saturation voltages |
IC = 0.1 A; IB = 10 mA |
- |
- |
0.8 |
V |
|||||
VCEsat |
|
IC = 0.2 A; IB = 20 mA |
- |
|
1.0 |
V |
|||||
VBEsat |
Base-emitter saturation voltage |
IC = 0.2 A; IB = 20 mA |
- |
|
1.0 |
V |
|||||
hFE |
DC current gain |
IC = 50 mA; VCE = 5 V |
- |
50 |
- |
|
|||||
hFE |
|
IC = 300 mA; VCE = 5 V |
25 |
50 |
100 |
|
|||||
DYNAMIC CHARACTERISTICS
Tmb = 25 ˚C unless otherwise specified
SYMBOL |
PARAMETER |
CONDITIONS |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
fT |
Transition frequency |
IC = 0.2 A; VCE = 10 V; f = 1 MHz |
20 |
- |
MHz |
|
Switching times (resistive load circuit) |
ICon = 0.2 A; IBon = 20 mA; |
|
|
|
ton |
Turn-on time |
-IBoff = 40 mA; VCC = 250 V |
0.4 |
0.7 |
μs |
|
|||||
ts |
Turn-off storage time |
|
3.5 |
5.0 |
μs |
tf |
Turn-off fall time |
|
0.4 |
- |
μs |
tf |
Turn-off fall time |
Tmb = 95 ˚C |
- |
1.3 |
μs |
+ 50v 100-200R
Horizontal
Oscilloscope
Vertical
300R |
1R |
6V
30-60 Hz
Fig.1. Test circuit for VCEOsust.
IC / mA
250
200
100
0
VCE / V |
min |
VCEOsust
Fig.2. Oscilloscope display for VCEOsust.
2 Measured with half sine-wave voltage (curve tracer).
March 1992 |
2 |
Rev 1.000 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BUW14 |
|
|
|
VCC |
|
|
RL |
|
VIM |
RB |
|
0 |
||
T.U.T. |
||
|
tp |
|
|
T |
|
Fig.3. |
Test circuit resistive load. VIM = -6 to +8 V |
|
VCC = 150 V; tp = 20 ms; d = tp / T = 0.01. |
||
RB and RL calculated from ICon and IBon requirements. |
||
|
90 % |
ICon |
|
90 % |
|
IC |
|
|
|
|
10 % |
|
|
ts |
ton |
|
tf |
|
|
toff |
IB |
|
IBon |
|
|
|
10 % |
|
|
tr |
30ns |
|
|
|
-IBoff |
Fig.4. Switching times waveforms with resistive load.
120 |
PD% |
|
|
Normalised Power Derating |
||||
|
|
|
|
|
|
|
|
|
110 |
|
|
|
|
|
|
|
|
100 |
|
|
|
|
|
|
|
|
90 |
|
|
|
|
|
|
|
|
80 |
|
|
|
|
|
|
|
|
70 |
|
|
|
|
|
|
|
|
60 |
|
|
|
|
|
|
|
|
50 |
|
|
|
|
|
|
|
|
40 |
|
|
|
|
|
|
|
|
30 |
|
|
|
|
|
|
|
|
20 |
|
|
|
|
|
|
|
|
10 |
|
|
|
|
|
|
|
|
0 |
0 |
20 |
40 |
60 |
80 |
100 |
120 |
140 |
|
||||||||
|
|
|
|
|
Tmb / |
C |
|
|
|
Fig.5. |
Normalised power dissipation. |
||||||
|
|
PD% = 100×PD/PD 25˚C = f (Tmb) |
|
|||||
hFE |
BUW14 |
1000 |
|
100 |
5V |
|
|
|
1V |
10 |
|
|
Tj = 25 C |
Tj = 125 C
1 |
|
|
0.01 |
0.1 |
1 |
IC / A
Fig.6. Typical DC current gain. hFE = f(IC) parameter VCE
VCESAT / V |
|
|
BUW14 |
10 |
|
|
|
|
|
Tj = 25 C |
|
0.2 A |
|
Tj = 125 C |
|
|
|
|
|
1 |
|
|
|
0.1 A |
|
|
|
0.1 |
|
|
|
IC=0.05 A |
|
|
|
0.01 |
|
|
1.0 |
0.001 |
0.01 |
0.1 |
|
|
|
IB / A |
|
Fig.7. Typical collector-emitter saturation voltage. VCEsat = f(IB); parameter IC
VBESAT / V |
|
BUW14 |
|||
1 |
|
|
|
|
|
|
|
Tj = 25 C |
|
|
|
0.9 |
|
Tj = 125 C |
|
|
|
0.8 |
|
|
|
|
|
0.7 |
|
|
|
|
|
0.6 |
|
|
IC= |
|
|
|
|
|
|
|
|
0.5 |
|
|
50 mA |
|
|
|
|
100 mA |
|
|
|
|
|
|
200 mA |
|
|
0.4 |
|
|
|
|
|
0 |
0.04 |
0.08 |
0.12 |
0.16 |
0.2 |
|
|
|
IB / A |
|
|
Fig.8. Typical base-emitter saturation voltage. VBEsat = f(IB); parameter IC
March 1992 |
3 |
Rev 1.000 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BUW14 |
|
|

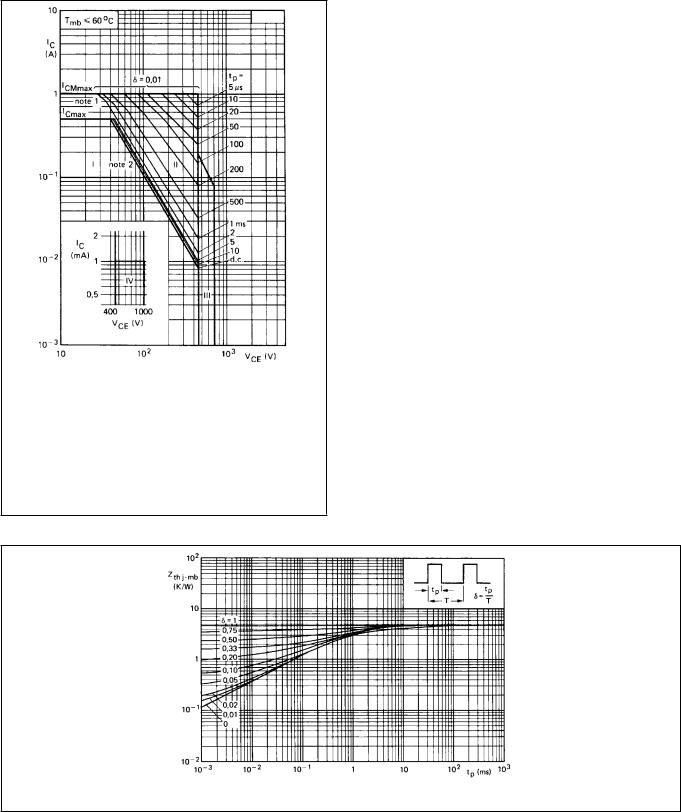

Fig.9. Forward bias safe operating area.
(1)Ptot max line.
(2)Second-breakdown limits.
I Region of permissible DC operation.
IIPermissible extension for repetitive pulse operation.
IIIArea of permissible operation during turn-on in single transistor converters, provided
≤100 Ω and tp ≤ 0.6 μs.RBE
IV Repetitive pulse operation in this region is permissible provided VBE ≤ 0 and tp ≤ 2 ms.
Fig.10. Transient thermal impedance.
Zth j-mb = f(t); parameter δ = duty cycle.
March 1992 |
4 |
Rev 1.000 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BUW14 |
|
|
MECHANICAL DATA
Dimensions in mm
Net Mass: 0.8 g
mounting |
2.8 |
7.8 |
base |
2.3 |
max |
3.1 |
3.75 |
|
|
2.5 |
11.1 |
|
max |
1)
2.54
max
1.2
15.3 min
|
|
|
|
|
|
1 |
2 |
3 |
||
|
0.5 |
|
|
|
|
|||||
|
|
|
|
|
||||||
4.58 |
|
|
|
|
||||||
|
2.29 |
|
0.88 |
1) Lead dimensions within this |
max |
|
|
zone uncontrolled. |
|
Fig.11. SOT82; pin 2 connected to mounting base.
Notes
1.Refer to mounting instructions for SOT82 envelopes.
2.Epoxy meets UL94 V0 at 1/8".
March 1992 |
5 |
Rev 1.000 |
