DISCRETE SEMICONDUCTORS
book, halfpage
M3D050
BAS45A
Low-leakage diode
Product specification |
1996 Mar 13 |
Supersedes data of June 1994
File under Discrete Semiconductors, SC01
Philips Semiconductors |
Product specification |
|
|
Low-leakage diode |
BAS45A |
|
|
|
|
FEATURES |
DESCRIPTION |
∙Continuous reverse voltage: max. 125 V
∙Repetitive peak forward current: max. 625 mA
∙Low reverse current: max. 1 nA
∙Switching time: typ. 1.5 μs.
APPLICATION
∙ Low leakage current applications.
LIMITING VALUES
Epitaxial medium-speed switching diode with a low leakage current in a hermetically-sealed glass SOD68 (DO-34) package.
k |
a |
handbook, halfpage |
MAM156
Fig.1 Simplified outline (SOD68; DO-34) and symbol.
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
VRRM |
repetitive peak reverse voltage |
|
− |
125 |
V |
VR |
continuous reverse voltage |
|
− |
125 |
V |
IF |
continuous forward current |
see Fig.2; note 1 |
− |
250 |
mA |
IFRM |
repetitive peak forward current |
|
− |
625 |
mA |
IFSM |
non-repetitive peak forward current |
square wave; Tj = 25 °C prior to |
|
|
|
|
|
surge; see Fig.4 |
|
|
|
|
|
tp = 1 μs |
− |
4 |
A |
|
|
tp = 1 ms |
− |
1 |
A |
|
|
tp = 1 s |
− |
0.5 |
A |
Ptot |
total power dissipation |
Tamb = 25 °C |
− |
300 |
mW |
Tstg |
storage temperature |
|
−65 |
+175 |
°C |
Tj |
junction temperature |
|
− |
175 |
°C |
Note
1. Device mounted on a printed-circuit board without metallization pad.
1996 Mar 13 |
2 |
Philips Semiconductors |
|
|
Product specification |
|||
|
|
|
|
|
|
|
Low-leakage diode |
|
|
|
BAS45A |
||
|
|
|
|
|
|
|
ELECTRICAL CHARACTERISTICS |
|
|
|
|
|
|
Tj = 25 °C unless otherwise specified. |
|
|
|
|
|
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
CONDITIONS |
TYP. |
|
MAX. |
UNIT |
|
|
|
|
|
|
|
VF |
forward voltage |
see Fig.3 |
|
|
|
|
|
|
IF = 1 mA |
− |
|
780 |
mV |
|
|
IF = 10 mA |
− |
|
860 |
mV |
|
|
IF = 100 mA |
− |
|
1000 |
mV |
IR |
reverse current |
see Fig.5 |
|
|
|
|
|
|
VR = 125 V; Emax = 100 lx |
− |
|
1 |
nA |
|
|
VR = 30 V; Tj = 125 °C; Emax = 100 lx |
− |
|
300 |
nA |
|
|
VR = 125 V; Tj = 125 °C; Emax = 100 lx |
− |
|
500 |
nA |
|
|
VR = 125 V; Tj = 150 °C; Emax = 100 lx |
− |
|
2 |
μA |
Cd |
diode capacitance |
f = 1 MHz; VR = 0; see Fig.6 |
− |
|
4 |
pF |
trr |
reverse recovery time |
when switched from IF = 10 mA to |
1.5 |
|
− |
μs |
|
|
IR = 10 mA; RL = 100 Ω; measured at |
|
|
|
|
|
|
IR = 1 mA; see Fig.7 |
|
|
|
|
THERMAL CHARACTERISTICS
SYMBOL |
PARAMETER |
CONDITIONS |
VALUE |
UNIT |
|
|
|
|
|
Rth j-tp |
thermal resistance from junction to tie-point |
8 mm from the body |
300 |
K/W |
Rth j-a |
thermal resistance from junction to ambient |
lead length 10 mm; note 1 |
500 |
K/W |
Note
1. Device mounted on a printed-circuit board without metallization pad.
1996 Mar 13 |
3 |
Philips Semiconductors |
Product specification |
|
|
Low-leakage diode |
BAS45A |
|
|
GRAPHICAL DATA |
|
|
|
|
|
|
|
|
|
300 |
|
|
|
MBG522 |
300 |
|
|
MBG523 |
|
|
|
|
|
|
|
|
|
||
handbook, halfpage |
|
|
|
|
handbook, halfpage |
|
|
|
|
IF |
|
|
|
|
IF |
|
|
|
|
(mA) |
|
|
|
|
(mA) |
|
|
|
|
|
|
|
|
|
|
(1) |
(2) |
(3) |
|
200 |
|
|
|
|
200 |
|
|
|
|
100 |
|
|
|
|
100 |
|
|
|
|
0 |
|
o |
|
|
0 |
|
|
|
|
0 |
100 |
C) |
200 |
0 |
0.5 |
1.0 |
VF (V) |
1.5 |
|
|
|
Tamb ( |
|
|
|
|
|
||
|
(1) |
Tj = 150 °C; typical values. |
|
|
(2) |
Tj = 25 |
°C; typical values. |
Device mounted on a printed-circuit board without metallization pad. |
(3) |
Tj = 25 |
°C; maximum values. |

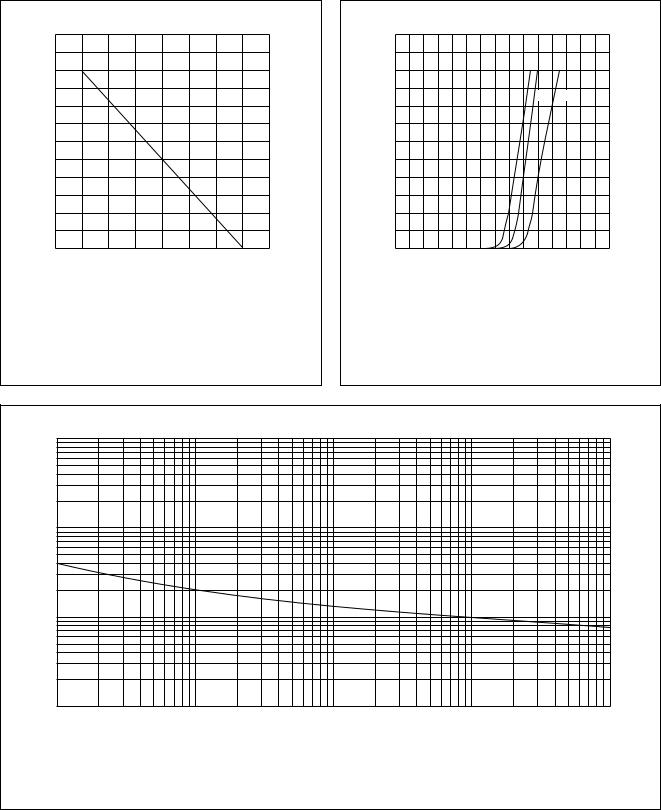

Fig.2 Maximum permissible continuous forward |
Fig.3 Forward current as a function of forward |
||
current as a function of ambient temperature. |
|
voltage. |
|
MBG704
102
IFSM
(A)
10
1
10−1
1 |
10 |
102 |
103 |
tp (μs) |
104 |
|
|
|
|
|
Based on square wave currents;Tj = 25 °C prior to surge.
Fig.4 Maximum permissible non-repetitive peak forward current as a function of pulse duration.
1996 Mar 13 |
4 |
Philips Semiconductors |
Product specification |
|
|
Low-leakage diode |
BAS45A |
|
|
10 |
4 |
|
|
MBD456 |
3 |
|
|
|
MBG524 |
|
|
|
|
|
|
|
|
|
|||
handbook, halfpage |
|
|
|
|
handbook, halfpage |
|
|
|
|
|
I R |
|
|
|
|
|
Cd |
|
|
|
|
(nA) |
|
|
|
|
|
(pF) |
|
|
|
|
103 |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
||
|
|
|
max |
|
|
2 |
|
|
|
|
102 |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
||
10 |
|
typ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
1 |
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
10 1 |
|
|
|
|
0 |
|
|
|
|
|
|
0 |
50 |
100 |
T j (oC) |
150 |
0 |
5 |
10 |
15 |
VR (V) 20 |
VR = 125 V. |
|
|
|
|
f = 1 MHz; Tj = 25 °C. |
|
|
|
||

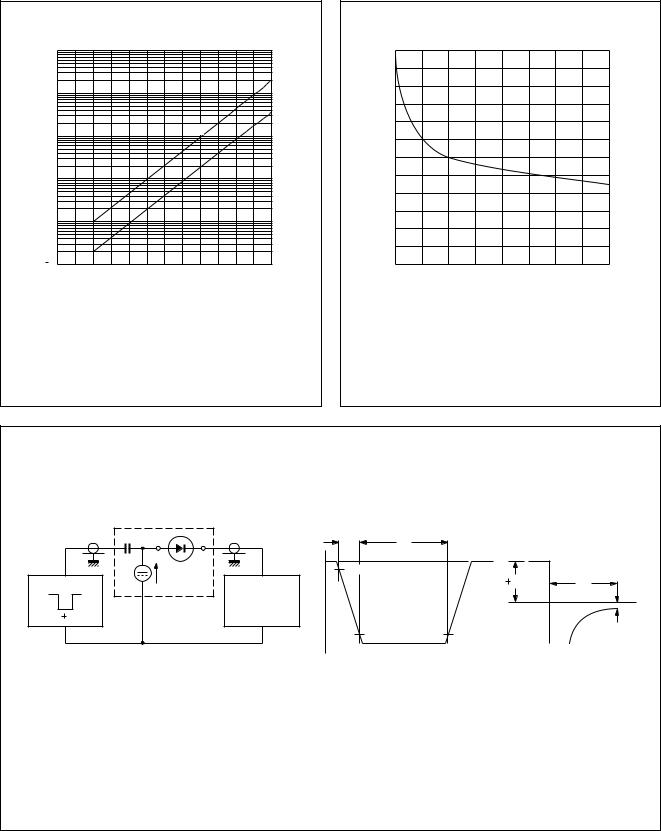

Fig.5 Reverse current as a function of junction |
Fig.6 Diode capacitance as a function of reverse |
temperature. |
voltage; typical values. |
|
|
|
|
t r |
t p |
|
|
|
|
|
|
t |
|
|
|
|
D.U.T. |
10% |
|
|
R |
= 50 Ω |
IF |
|
I F |
t rr |
|
S |
|
|
|
SAMPLING |
|
t |
|
|
|
|
OSCILLOSCOPE |
|
|
|
|
|
|
|
|
|
V = VR |
IF x R S |
|
R i = 50 Ω |
|
|
|
|
|
|
|
|
90% |
(1) |
|
|
|
|
VR |
|
|
|
|
|
|
|
|
|
|
|
|
|
MGA881 |
|
|
input signal |
output signal |
Fig.7 Reverse recovery time test circuit and waveforms.
1996 Mar 13 |
5 |
