DISCRETE SEMICONDUCTORS
OM2052
Wideband amplifier module
Product specification |
1995 Nov 28 |
Supersedes data of November 1991
File under Discrete Semiconductors, SC16
Philips Semiconductors |
Product specification |
|
|
Wideband amplifier module |
OM2052 |
|
|
|
|
DESCRIPTION
A two-stage wideband amplifier in hybrid integrated circuit form on a thin-film substrate. The device is intended as an
amplifier in MATV and CATV systems.
PINNING
PIN |
DESCRIPTION |
|
|
1 |
input |
2 |
common (-) |
3 |
common (-) |
4 |
common (-) |
5 |
not connected |
6 |
common (-) |
7 |
output/supply (+) |
|
|
handbook, halfpage |
pin 1 identification |
||
|
|
|
|
1
7 |
6 |
4 |
3 |
2 |
1 |
MLA420 |
Fig.1 Simplified outline.
QUICK REFERENCE DATA
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
|
f |
frequency range |
|
40 |
- |
860 |
MHz |
|
|
|
|
|
|
|
ZS, ZL |
source and load impedance |
|
- |
75 |
- |
W |
GT |
transducer gain = ïS21ï2 |
|
- |
28 |
- |
dB |
DGT |
flatness of frequency response |
|
- |
1 |
- |
dB |
Vo(rms) |
output voltage (RMS value) |
dim = -60 dB; |
- |
107 |
- |
dBmV |
|
|
3rd order intermodulation (3-tone) |
|
|
|
|
F |
noise figure |
|
- |
4.5 |
- |
dB |
|
|
|
|
|
|
|
VB |
DC supply voltage |
|
10.8 |
12 |
13.2 |
V |
Tamb |
ambient operating temperature |
|
-20 |
- |
+70 |
°C |
1995 Nov 28 |
2 |
Philips Semiconductors |
Product specification |
|
|
Wideband amplifier module |
OM2052 |
|
|

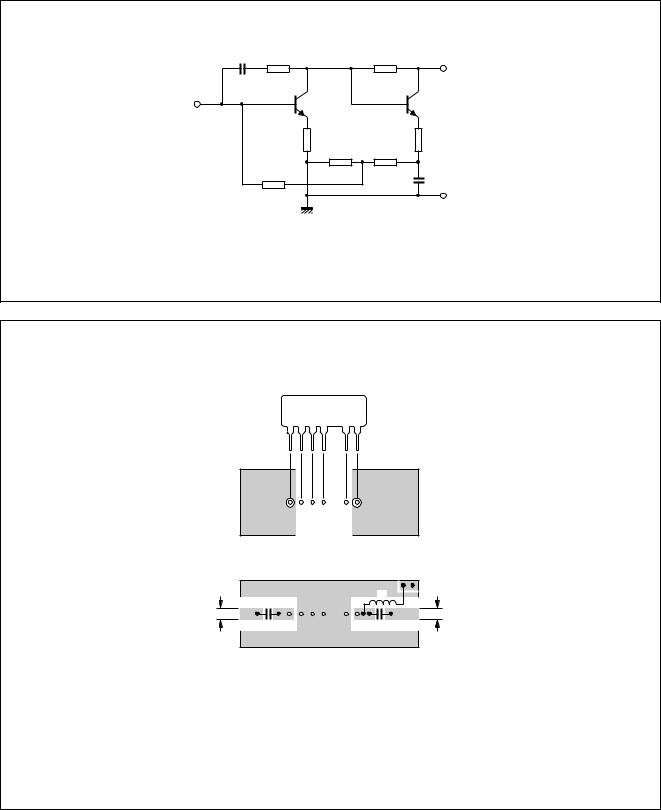

CIRCUIT DIAGRAM AND PRINTED-CIRCUIT BOARD |
|
C1 |
R1 |
R4 |
|
|
7 |
1 |
TR1 |
TR2 |
|
||
|
R3 |
R8 |
|
R5 |
R7 |
R2
C3
2, 3, 4, 6
MCD498
Fig.2 Circuit diagram.
handbook, halfpage
|
top view |
|
|
|
|
L |
|
75 Ω |
|
|
75 Ω |
track |
C |
C |
track |
|
|
||
|
bottom view |
|
MCD497 |
L > 5 mH; e.g. catalogue No. 3122 108 20150, or 27 turns enamelled 0.3 mm copper wire wound on a ferrite core with a diameter of 1.6 mm. C > 220 pF ceramic capacitor.
Fig.3 Printed-circuit board holes and tracks.
1995 Nov 28 |
3 |
Philips Semiconductors |
|
|
|
|
Product specification |
||||
|
|
|
|
|
|
|
|
|
|
Wideband amplifier module |
|
|
|
|
|
OM2052 |
|||
|
|
|
|
|
|
|
|
|
|
LIMITING VALUES |
|
|
|
|
|
|
|
|
|
In accordance with the Absolute Maximum Rating System (IEC 134). |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
MIN. |
|
MAX. |
|
UNIT |
|||
|
|
|
|
|
|
|
|
|
|
VB |
DC supply voltage |
|
- |
|
|
15 |
|
V |
|
PIM |
peak incident powers on pins 1 and 8 |
- |
|
|
100 |
|
mW |
||
Tamb |
ambient operating temperature |
|
-20 |
|
|
+70 |
|
°C |
|
Tstg |
storage temperature |
|
-40 |
|
|
+125 |
°C |
||
CHARACTERISTICS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
|
TYP. |
MAX. |
UNIT |
||
|
|
|
|
|
|
|
|
|
|
Measuring conditions |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tamb |
ambient operating temperature |
|
- |
|
25 |
|
- |
|
°C |
VB |
DC supply voltage |
|
11.9 |
|
12 |
|
12.1 |
|
V |
ZS |
source impedance |
|
- |
|
75 |
|
- |
|
W |
ZL |
load impedance |
|
- |
|
75 |
|
- |
|
W |
Z0 |
characteristic impedance of |
|
- |
|
75 |
|
- |
|
W |
|
HF connections |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
f |
frequency range |
|
40 |
|
- |
|
860 |
|
MHz |
|
|
|
|
|
|
|
|
|
|
Performance |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IB |
supply current |
|
38 |
|
42 |
|
44 |
|
mA |
GT |
transducer gain = ïS21ï2 |
|
26 |
|
28 |
|
29 |
|
dB |
DGT |
flatness of frequency response |
|
- |
|
1 |
|
- |
|
dB |
VSWRin |
individual maximum VSWR |
input; note 1 |
- |
|
2.2 |
- |
|
|
|
VSWRout |
individual maximum VSWR |
output; note 1 |
- |
|
2.1 |
- |
|
|
|
ïS12ï2 |
back attenuation |
f = 100 MHz |
- |
|
36 |
|
- |
|
dB |
|
|
f = 860 MHz |
- |
|
29 |
|
- |
|
dB |
|
|
|
|
|
|
|
|
|
|
Vo(rms) |
output voltage (RMS value) |
dim = -60 dB; |
- |
|
107 |
- |
|
dBmV |
|
|
|
3rd order intermodulation (3-tone) |
|
|
|
|
|
|
|
F |
noise figure |
|
- |
|
4.5 |
- |
|
dB |
|
|
|
|
|
|
|
|
|
|
|
Operating conditions |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tamb |
ambient operating temperature |
|
-20 |
|
- |
|
+70 |
|
°C |
VB |
DC supply voltage |
|
10.8 |
|
12 |
|
13.2 |
|
V |
f |
frequency range |
|
40 |
|
- |
|
860 |
|
MHz |
|
|
|
|
|
|
|
|
|
|
ZS |
source impedance |
|
- |
|
75 |
|
- |
|
W |
ZL |
load impedance |
|
- |
|
75 |
|
- |
|
W |
Note
1. Highest value (for sample) occurring in the frequency range.
1995 Nov 28 |
4 |
Philips Semiconductors |
Product specification |
|
|
Wideband amplifier module |
OM2052 |
|
|
MCD450
|
32 |
||
S |
21 |
|
2 |
|
|||
|
|
||
|
|
|
|
(dB) |
|||
|
30 |
||
|
28 |
||
|
26 |
||
|
24 |
||
|
22 |
||
0 |
200 |
400 |
600 |
800 |
1000 |
|
|
|
|
f |
(MHz) |

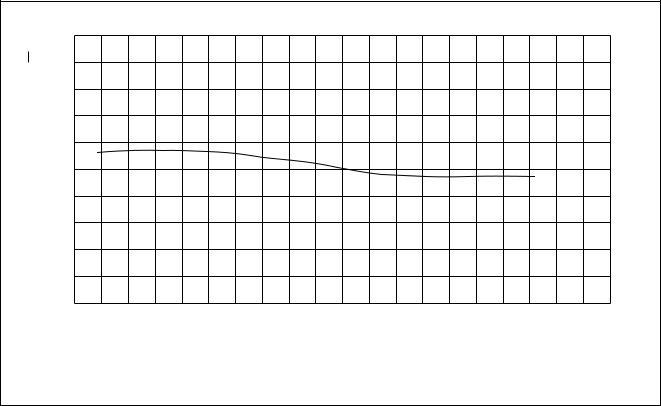

Gain over entire frequency range.
Z0 = 75 Ω.
Fig.4 Transducer gain as a function of frequency.
