Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BU2508A |
|
|
|
|
GENERAL DESCRIPTION
Enhanced performance, new generation, high-voltage, high-speed switching npn transistor in a plastic envelope intended for use in horizontal deflection circuits of colour television receivers. Features exceptional tolerance to base drive and collector current load variations resulting in a very low worst case dissipation.
QUICK REFERENCE DATA
SYMBOL |
PARAMETER |
CONDITIONS |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
VCESM |
Collector-emitter voltage peak value |
VBE = 0 V |
- |
1500 |
V |
VCEO |
Collector-emitter voltage (open base) |
|
- |
700 |
V |
IC |
Collector current (DC) |
|
- |
8 |
A |
ICM |
Collector current peak value |
Tmb ≤ 25 ˚C |
- |
15 |
A |
Ptot |
Total power dissipation |
- |
125 |
W |
|
VCEsat |
Collector-emitter saturation voltage |
IC = 4.5 A; IB = 1.29 A |
- |
1.0 |
V |
VCEsat |
Collector-emitter saturation voltage |
IC = 4.5 A; IB = 1.1 A |
- |
5.0 |
V |
ICsat |
Collector saturation current |
|
4.5 |
- |
A |
tf |
Fall time |
ICM = 4.5 A; IB(end) = 1.1 A |
0.4 |
0.6 |
μs |
PINNING - SOT93 |
PIN CONFIGURATION |
SYMBOL |
|
|
|
|
||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
PIN |
|
|
|
|
DESCRIPTION |
|
|
|
tab |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
c |
|
||
1 |
|
|
base |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
2 |
|
|
collector |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
b |
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
3 |
|
|
emitter |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
tab |
|
collector |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
1 |
|
|
|
2 |
|
|
|
3 |
|
|
|
|
|
|
|
|
|
|
e |
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
LIMITING VALUES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
Limiting values in accordance with the Absolute Maximum Rating System (IEC 134) |
|
|
|
|
|
|||||||||||||||||||||||||||
|
SYMBOL |
|
PARAMETER |
|
|
CONDITIONS |
|
MIN. |
|
MAX. |
UNIT |
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
|
VCESM |
|
|
Collector-emitter voltage peak value |
|
VBE = 0 V |
|
- |
|
1500 |
V |
|||||||||||||||||||||
|
VCEO |
|
|
Collector-emitter voltage (open base) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
700 |
V |
|||||||
|
IC |
|
|
Collector current (DC) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
8 |
A |
||||||
|
ICM |
|
|
Collector current peak value |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
15 |
A |
|||||||
|
IB |
|
|
Base current (DC) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
4 |
A |
||||||
|
IBM |
|
|
Base current peak value |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
6 |
A |
||||||
|
-IB(AV) |
|
|
Reverse base current |
|
|
average over any 20 ms period |
- |
|
100 |
mA |
|||||||||||||||||||||
|
-I |
|
|
Reverse base current peak value 1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
5 |
A |
|||||||
|
BM |
|
|
|
|
|
|
|
|
Tmb ≤ 25 ˚C |
|
|
|
|
|
|
||||||||||||||||
|
Ptot |
|
|
Total power dissipation |
|
|
|
- |
|
125 |
W |
|||||||||||||||||||||
|
Tstg |
|
|
Storage temperature |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
-65 |
|
150 |
˚C |
||||||
|
Tj |
|
|
Junction temperature |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
150 |
˚C |
||||||
THERMAL RESISTANCES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
SYMBOL |
|
PARAMETER |
|
|
CONDITIONS |
|
TYP. |
|
MAX. |
UNIT |
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Rth j-mb |
|
|
Junction to mounting base |
|
|
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
1.0 |
K/W |
||||||||
|
Rth j-a |
|
|
Junction to ambient |
|
|
in free air |
|
45 |
|
- |
K/W |
||||||||||||||||||||
1 Turn-off current.
November 1995 |
1 |
Rev 1.300 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BU2508A |
|
|
STATIC CHARACTERISTICS
Tmb = 25 ˚C unless otherwise specified
SYMBOL |
PARAMETER |
CONDITIONS |
|
|
MIN. |
TYP. |
MAX. |
UNIT |
|||
I |
Collector cut-off current 2 |
V = |
0 V; V |
CE |
= V |
CESMmax |
- |
- |
1.0 |
mA |
|
CES |
|
BE |
|
|
|
|
|
|
|
||
ICES |
|
VBE = |
0 V; VCE = VCESMmax; |
- |
- |
2.0 |
mA |
||||
|
|
Tj = 125 ˚C |
|
|
|
|
|
|
|
||
IEBO |
Emitter cut-off current |
VEB = |
7.5 V; IC = 0 A |
- |
- |
1.0 |
mA |
||||
BVEBO |
Emitter-base breakdown voltage |
IB = 1 mA |
|
|
|
7.5 |
13.5 |
- |
V |
||
VCEOsust |
Collector-emitter sustaining voltage |
IB = 0 A; IC = 100 mA; |
700 |
- |
- |
V |
|||||
|
|
L = 25 mH |
|
|
|
|
|
|
|
||
VCEsat |
Collector-emitter saturation voltages |
IC = 4.5 |
A; IB = |
1.1 |
A |
- |
- |
5.0 |
V |
||
VCEsat |
|
IC = 4.5 |
A; IB = |
1.29 A |
- |
- |
1.0 |
V |
|||
VBEsat |
Base-emitter saturation voltage |
IC = 4.5 |
A; IB = |
1.7 |
A |
- |
- |
1.3 |
V |
||
hFE |
DC current gain |
IC = 100 mA; VCE = 5 V |
6 |
13 |
26 |
|
|||||
hFE |
|
IC = 4.5 |
A; VCE = 1 |
V |
4 |
5.5 |
7.5 |
|
|||
DYNAMIC CHARACTERISTICS
Tmb = 25 ˚C unless otherwise specified
SYMBOL |
PARAMETER |
CONDITIONS |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
Cc |
Collector capacitance |
IE = 0 A; VCB = 10 V; f = 1 MHz |
80 |
- |
pF |
|
Switching times (16 kHz line |
ICM = 4.5 A; IB(end) = 1.1 A; LB = 6 μH; |
|
|
|
ts |
deflection circuit) |
-VBB = 4 V; (-dIB/dt = 0.6 A/μs) |
|
|
μs |
Turn-off storage time |
|
5.0 |
6.0 |
||
tf |
Turn-off fall time |
|
0.4 |
0.6 |
μs |
|
Switching times (38 kHz line |
ICM = 4.0 A; IB(end) = 0.9 A; LB = 6 μH; |
|
|
|
|
deflection circuit) |
-VBB = 4 V; (-dIB/dt = 0.6 A/μs) |
|
|
μs |
ts |
Turn-off storage time |
|
4.7 |
5.7 |
|
tf |
Turn-off fall time |
|
0.25 |
0.35 |
μs |
+ 50v 100-200R
Horizontal
Oscilloscope
Vertical
100R |
1R |
6V
30-60 Hz

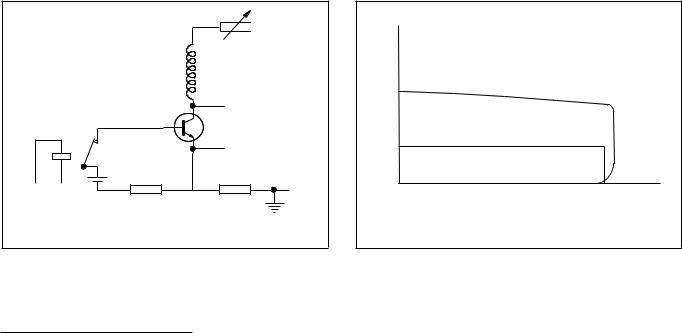

Fig.1. Test circuit for VCEOsust.
IC / mA
250
200
100
0
VCE / V |
min |
VCEOsust
Fig.2. Oscilloscope display for VCEOsust.
2 Measured with half sine-wave voltage (curve tracer).
November 1995 |
2 |
Rev 1.300 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BU2508A |
|
|
|
BU2508A |
ICM |
|
|
|
IC |
DIODE |
|
|
|
t |
IB |
IBend |
|
t |
20us |
26us |
64us
VCE
t

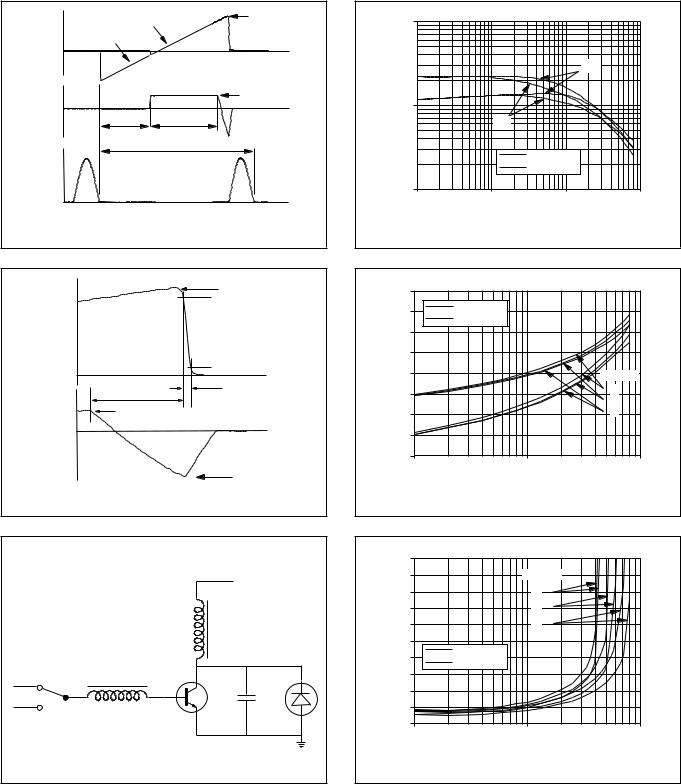

Fig.3. Switching times waveforms.
|
ICM |
|
|
90 % |
|
IC |
|
|
|
10 % |
|
tf |
t |
|
ts |
||
|
||
IB |
|
|
IBend |
|
|
|
t |
- IBM
Fig.4. Switching times definitions.
+ 150 v nominal adjust for ICM
1mH
IBend |
LB |
BU2508A |
BY228 |
12nF
-VBB
Fig.5. Switching times test circuit (BU2508A).
h FE |
|
|
|
100 |
|
|
|
|
|
|
5V |
10 |
|
|
|
|
1V |
|
|
|
|
Tj = 25 C |
|
|
|
Tj = 125 C |
|
1 |
0.1 |
1 |
10 |
0.01 |
|||
|
|
IC / A |
|
Fig.6. Typical DC current gain. hFE = f (IC) parameter VCE
1.2 |
VBESAT / V |
|
BU2508A |
|
|
|
|
1.1 |
Tj = 25 C |
|
|
Tj = 125 C |
|
|
|
|
|
|
|
1 |
|
|
|
0.9 |
|
|
|
0.8 |
|
|
IC/IB= |
0.7 |
|
|
3 |
|
|
4 |
|
|
|
|
|
0.6 |
|
|
5 |
|
|
|
|
0.5 |
|
|
|
0.4 |
0.1 |
1 |
10 |
|
|||
|
|
IC / A |
|
Fig.7. Typical base-emitter saturation voltage. |
|||
|
VBEsat = f (IC); parameter IC/IB |
||
1 |
VCESAT / V |
|
BU2508A |
|
|
|
|
0.9 |
|
IC/IB= |
|
0.8 |
|
5 |
|
0.7 |
|
4 |
|
0.6 |
|
3 |
|
0.5 |
Tj = 25 C |
|
|
0.4 |
|
|
|
Tj = 125 C |
|
|
|
|
|
|
|
0.3 |
|
|
|
0.2 |
|
|
|
0.1 |
|
|
|
0 |
0.1 |
1 |
10 |
|
|||
|
|
IC / A |
|
Fig.8. Typical collector-emitter saturation voltage. VCEsat = f (IC); parameter IC/IB
November 1995 |
3 |
Rev 1.300 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BU2508A |
|
|
1.2 |
VBESAT / V |
|
|
BU2508A |
|
|
|
|
|
|
|
|
|
Tj = 25 C |
|
|
|
1.1 |
|
Tj = 125 C |
|
|
|
1 |
|
|
|
|
|
0.9 |
|
|
|
|
IC= |
|
|
|
|
|
|
|
|
|
|
|
6A |
0.8 |
|
|
|
|
4.5A |
|
|
|
|
|
3A |
0.7 |
|
|
|
|
2A |
|
|
|
|
|
|
0.6 |
0 |
1 |
2 |
3 |
4 |
|
|||||
|
|
|
IB / A |
|
|

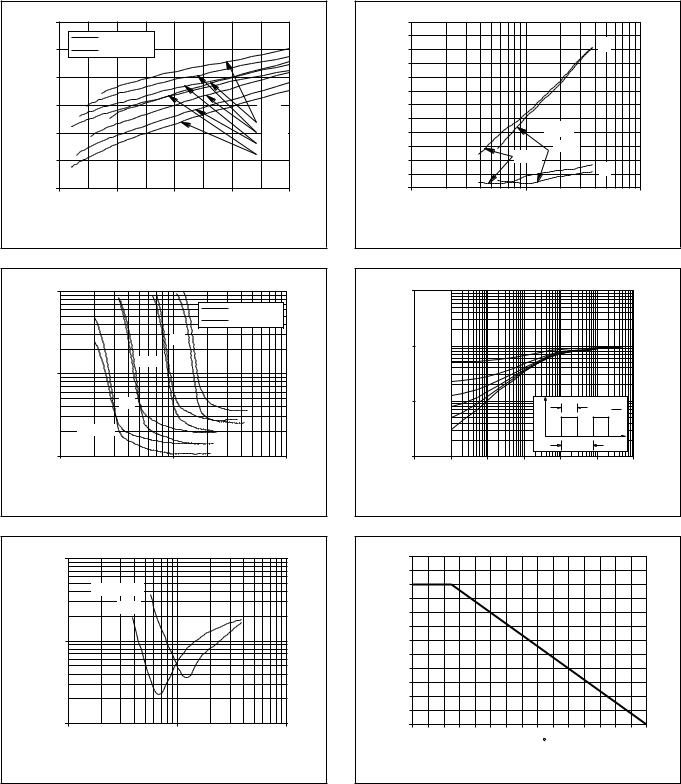

Fig.9. Typical base-emitter saturation voltage. VBEsat = f (IB); parameter IC
VCESAT / V |
|
BU2508A |
10 |
|
|
|
|
Tj = 25 C |
|
|
Tj = 125 C |
|
6A |
|
|
4.5A |
|
1 |
|
|
3A |
|
|
IC=2A |
|
|
0.1 |
1 |
10 |
0.1 |
||
|
IB / A |
|
Fig.10. Typical collector-emitter saturation voltage. VCEsat = f (IB); parameter IC
1000 |
Eoff / uJ |
|
BU2508A |
|
|
|
|
|
IC = 4.5A |
|
|
|
3.5A |
|
|
100 |
|
|
|
10 |
0.1 |
1 |
10 |
|
|||
|
|
IB / A |
|
Fig.11. Typical turn-off losses. Tj = 85˚C Eoff = f (IB); parameter IC; f = 16 kHz
12 |
ts, tf / us |
|
BU2508A |
|
|
|
|
11 |
|
|
ts |
10 |
|
|
|
|
|
|
|
9 |
|
|
|
8 |
|
|
|
7 |
|
|
|
6 |
|
|
|
5 |
|
|
IC = |
4 |
|
|
|
|
|
|
|
3 |
|
3.5A |
4.5A |
2 |
|
|
|
|
|
tf |
|
1 |
|
|
|
|
|
|
|
0 |
0.1 |
1 |
10 |
|
|||
|
|
IB / A |
|
Fig.12. Typical collector storage and fall time. |
||||||
ts = f (IB); tf = f (IB); parameter IC; Tj = 85˚C; f = 16 kHz |
||||||
10 |
Zth / (K/W) |
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
0.5 |
|
|
|
|
|
|
0.2 |
|
|
|
|
|
0.1 |
0.1 |
|
|
|
|
tp |
0.05 |
|
P |
tp |
D = |
||
|
|
|||||
|
0.02 |
|
D |
|
T |
|
|
D = 0 |
|
|
|
|
|
|
|
|
|
|
T |
t |
0.01 |
|
|
|
|
|
|
|
|
|
|
|
|
|
1E-06 |
1E-04 |
|
1E-02 |
|
1E+00 |
|
|
|
|
t / s |
|
|
|
Fig.13. |
Transient thermal impedance. |
|||||||
|
|
Zth j-mb = f(t); parameter D = tp/T |
|
|||||
120 |
PD% |
|
|
Normalised Power Derating |
||||
|
|
|
|
|
|
|
|
|
110 |
|
|
|
|
|
|
|
|
100 |
|
|
|
|
|
|
|
|
90 |
|
|
|
|
|
|
|
|
80 |
|
|
|
|
|
|
|
|
70 |
|
|
|
|
|
|
|
|
60 |
|
|
|
|
|
|
|
|
50 |
|
|
|
|
|
|
|
|
40 |
|
|
|
|
|
|
|
|
30 |
|
|
|
|
|
|
|
|
20 |
|
|
|
|
|
|
|
|
10 |
|
|
|
|
|
|
|
|
0 |
0 |
20 |
40 |
60 |
80 |
100 |
120 |
140 |
|
||||||||
|
|
|
|
|
Tmb / |
C |
|
|
Fig.14. |
Normalised power dissipation. |
|||||||
|
|
PD% = 100×PD/PD 25˚C = f (Tmb) |
|
|||||
November 1995 |
4 |
Rev 1.300 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BU2508A |
|
|
IC / A |
|
|
|
100 |
|
|
|
|
|
= 0.01 |
|
|
ICM max |
|
tp = |
|
|
|
|
10 |
IC max |
|
5 us |
|
|
|
|
|
(1) |
II |
10 |
|
|
|
|
|
|
|
20 |
1 |
I |
|
50 |
|
|
100 |
|
|
|
|
|
|
|
|
200 |
|
|
|
500 |
|
|
(2) |
1 ms |
0.1 |
|
2 |
|
|
|
||
|
|
|
|
|
|
|
5 |
|
|
|
10 |
|
|
|
20 |
|
|
|
DC |
0.01 |
|
|
|
1 |
10 |
100 |
1000 |
|
|
VCE / V |
|

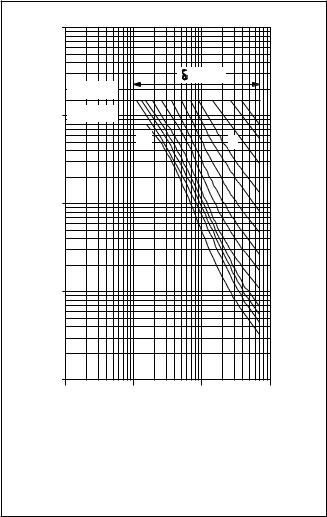

Fig.15. Forward bias safe operating area. Tmb = 25˚C
(1)Ptot max line.
(2)Second-breakdown limits
(independent of temperature). I Region of DC operation.
II Extension for repetitive pulse operation.
November 1995 |
5 |
Rev 1.300 |
